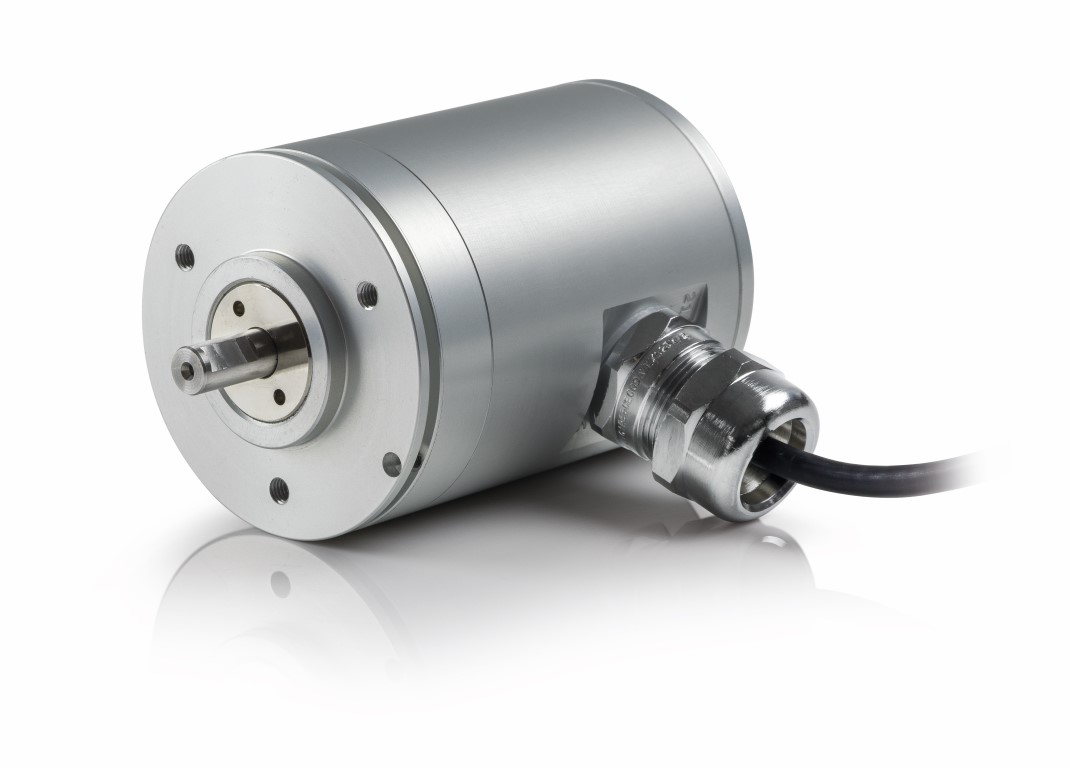

ELTRAEX 80 A-D
产品概述
增量型旋转编码器 EX 80 A-D，Flameproof 增量型 encoder Atex certified。技术原理：光电式；外径：80；轴径：10；分辨率：100~10000；防护等级：65。
规格参数
| Tipology | Rotary with bearing |
| Category | Incrementals |
| Mechanics | Solid shaft |
| Technology | Optical |
| Size [mm] | 80 |
| Shaft [mm] | 10 |
| Resolution [ppr] | Da 100A 10000 |
| IP | 65 |
| Output interface | Line Driver HTLLine Driver RS-422NPN Open CollectorPush Pull |
| Hall signals | No |
| Markings / Certifications | ATEX, CE / UKCA, UL / CSA |
| Operating temperature [°C] | -20 ... 50 |
分辨率：100~10000；输出接口：Line Driver HTLLine Driver RS-422NPN Open CollectorPush Pull；防护等级：65；轴径：10；技术原理：光电式
