ELTRAETMR A-B
产品概述

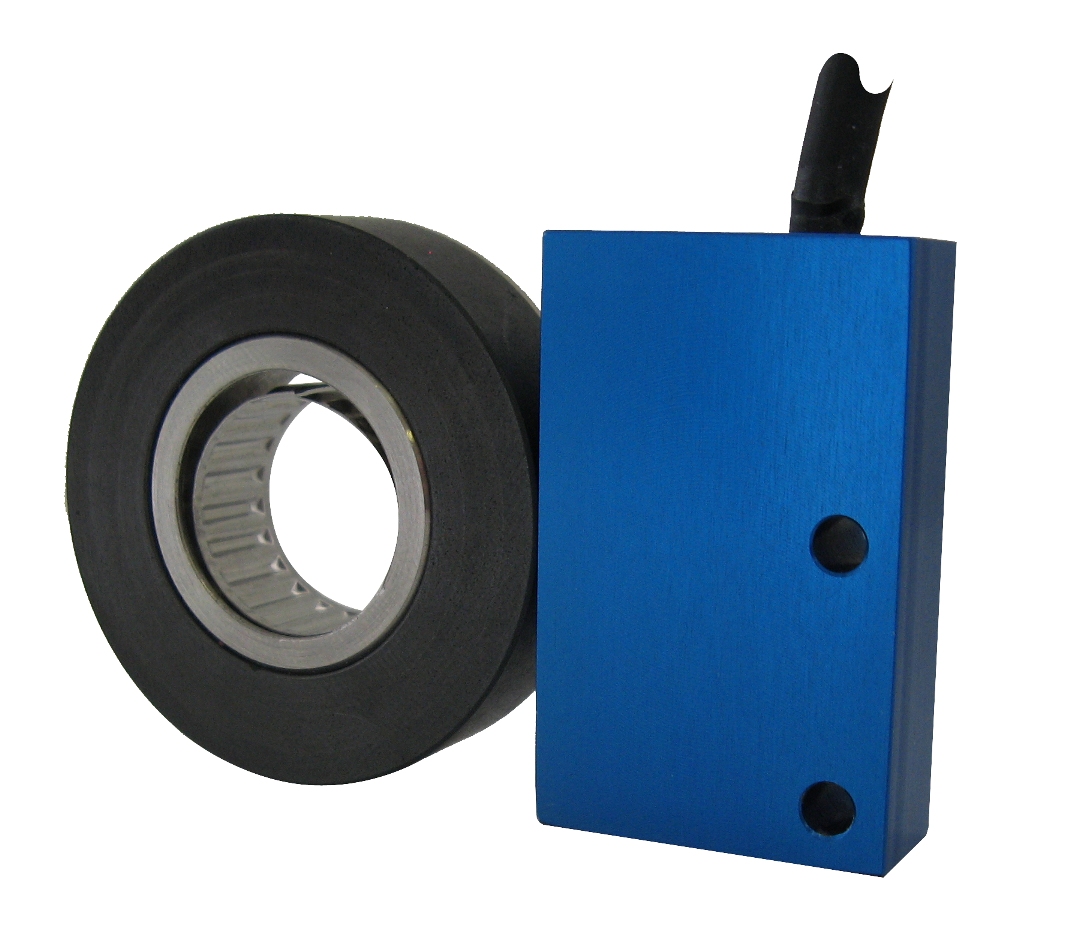

增量型旋转编码器 ETMR A-B，No-contact 磁电式 编码器系列。技术原理：磁电式；轴径：9, 9,52, 10, 11, 14, 19, 24, 28；分辨率：4096~64；防护等级：67；输出接口：Line Driver HTLLine Driver RS-422Push Pull。
规格参数
| Tipology | Rotary without bearing |
| Category | Incrementals |
| Mechanics | Blind / Through hollow shaft |
| Technology | Magnetic |
| Shaft [mm] | 9, 9,52, 10, 11, 14, 19, 24, 28 |
| Resolution [ppr] | Da 4096A 64 |
| IP | 67 |
| Output interface | Line Driver HTLLine Driver RS-422Push Pull |
| Hall signals | No |
| Markings / Certifications | CE / UKCA, UL / CSA |
| Operating temperature [°C] | -20 ... 85 |
分辨率：4096~64；输出接口：Line Driver HTLLine Driver RS-422Push Pull；防护等级：67；轴径：9, 9,52, 10, 11, 14, 19, 24, 28；技术原理：磁电式
