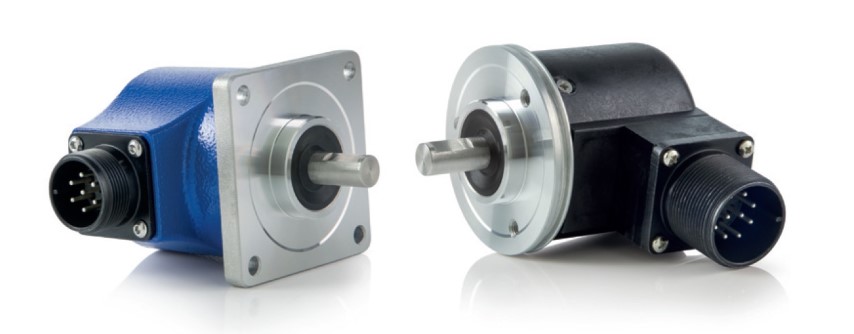

ER 63 A-D-E 增量型旋转编码器 with high mechanical resistance

ER 63 A-D-E 增量型旋转编码器 with high mechanical resistance
ELTRAER 63 A-D-E

产品概述

增量型旋转编码器 ER 63 A-D-E，增量型旋转编码器 with high mechanical resistance。技术原理：光电式；外径：64；轴径：8, 9,52, 10；分辨率：1~24000；防护等级：54, 66。

规格参数

TipologyRotary with bearing
CategoryIncrementals
MechanicsSolid shaft
TechnologyOptical
Size [mm]64
Shaft [mm]8, 9,52, 10
Resolution [ppr]Da 1A 24000
IP54, 66
Output interfaceLine Driver HTLLine Driver RS-422NPN Open CollectorPush Pull
Hall signalsNo
Markings / CertificationsCE / UKCA, UL / CSA
Operating temperature [°C]-25 ... 85
分辨率：1~24000；输出接口：Line Driver HTLLine Driver RS-422NPN Open CollectorPush Pull；防护等级：54, 66；轴径：8, 9,52, 10；技术原理：光电式
