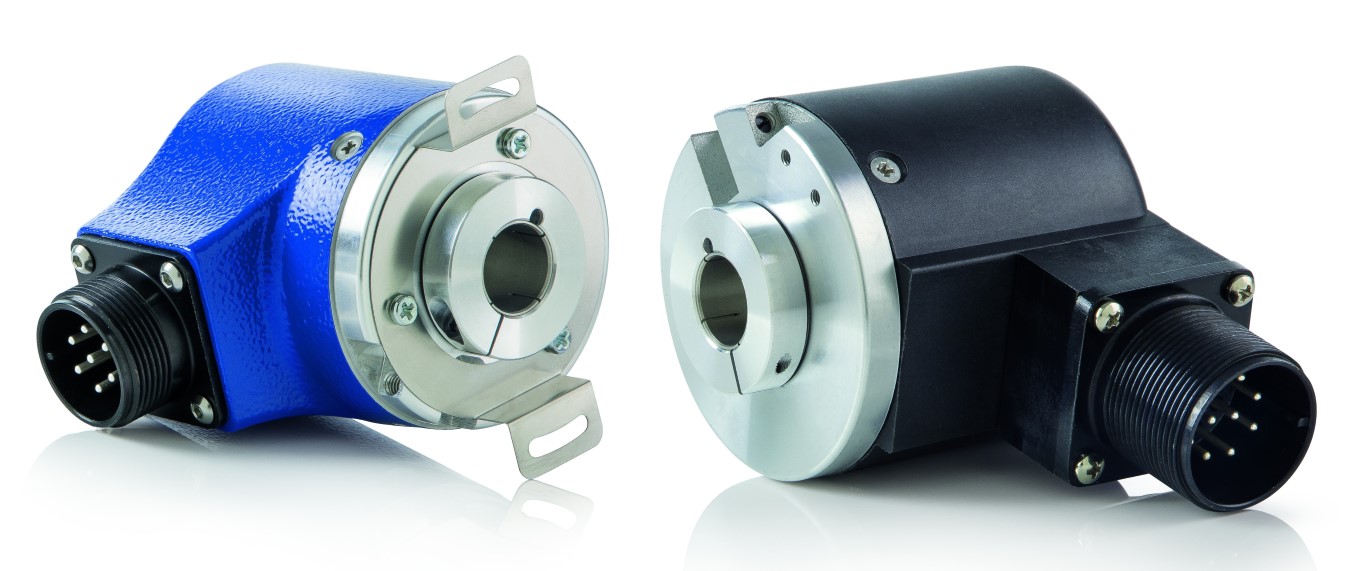

ER 58-63 F-G 光电式 增量型 encoder for industrial application

ER 58-63 F-G 光电式 增量型 encoder for industrial application
ELTRAER 58-63 F-G

产品概述

增量型旋转编码器 ER 58-63 F-G，光电式 增量型 encoder for industrial application。技术原理：光电式；外径：58, 64；轴径：8, 10, 12, 14, 15；分辨率：100~24000；防护等级：54, 66。

规格参数

TipologyRotary with bearing
CategoryIncrementals
MechanicsBlind / Through hollow shaft
TechnologyOptical
Size [mm]58, 64
Shaft [mm]8, 10, 12, 14, 15
Resolution [ppr]Da 100A 24000
IP54, 66
Output interfaceLine Driver HTLLine Driver RS-422NPN Open CollectorPush Pull
Hall signalsNo
Markings / CertificationsCE / UKCA, UL / CSA
Operating temperature [°C]-20 ... 70
分辨率：100~24000；输出接口：Line Driver HTLLine Driver RS-422NPN Open CollectorPush Pull；防护等级：54, 66；轴径：8, 10, 12, 14, 15；技术原理：光电式
