ELTRAER 40 A-B-C-H-I-N-X
产品概述

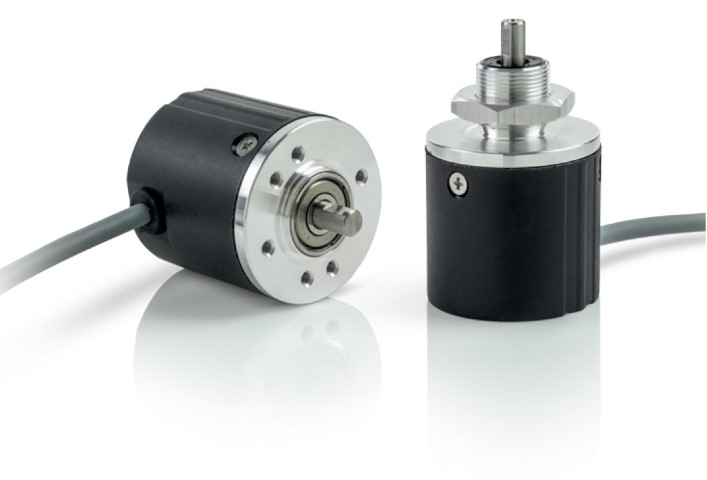

增量型旋转编码器 ER 40 A-B-C-H-I-N-X，旋转 增量型 encoder for general application。技术原理：光电式；外径：42, 44, 50；轴径：6, 8；分辨率：100~24000；输出接口：Line Driver HTLLine Driver RS-422NPN Open CollectorPush Pull。
规格参数
| Tipology | Rotary with bearing |
| Category | Incrementals |
| Mechanics | Solid shaft |
| Technology | Optical |
| Size [mm] | 42, 44, 50 |
| Shaft [mm] | 6, 8 |
| Resolution [ppr] | Da 100A 24000 |
| Output interface | Line Driver HTLLine Driver RS-422NPN Open CollectorPush Pull |
| Hall signals | No |
| Markings / Certifications | CE / UKCA, UL / CSA |
| Operating temperature [°C] | -25 ... 85 |
分辨率：100~24000；输出接口：Line Driver HTLLine Driver RS-422NPN Open CollectorPush Pull；轴径：6, 8；技术原理：光电式；外径：42, 44, 50
