ELTRAER 38 F-G
产品概述

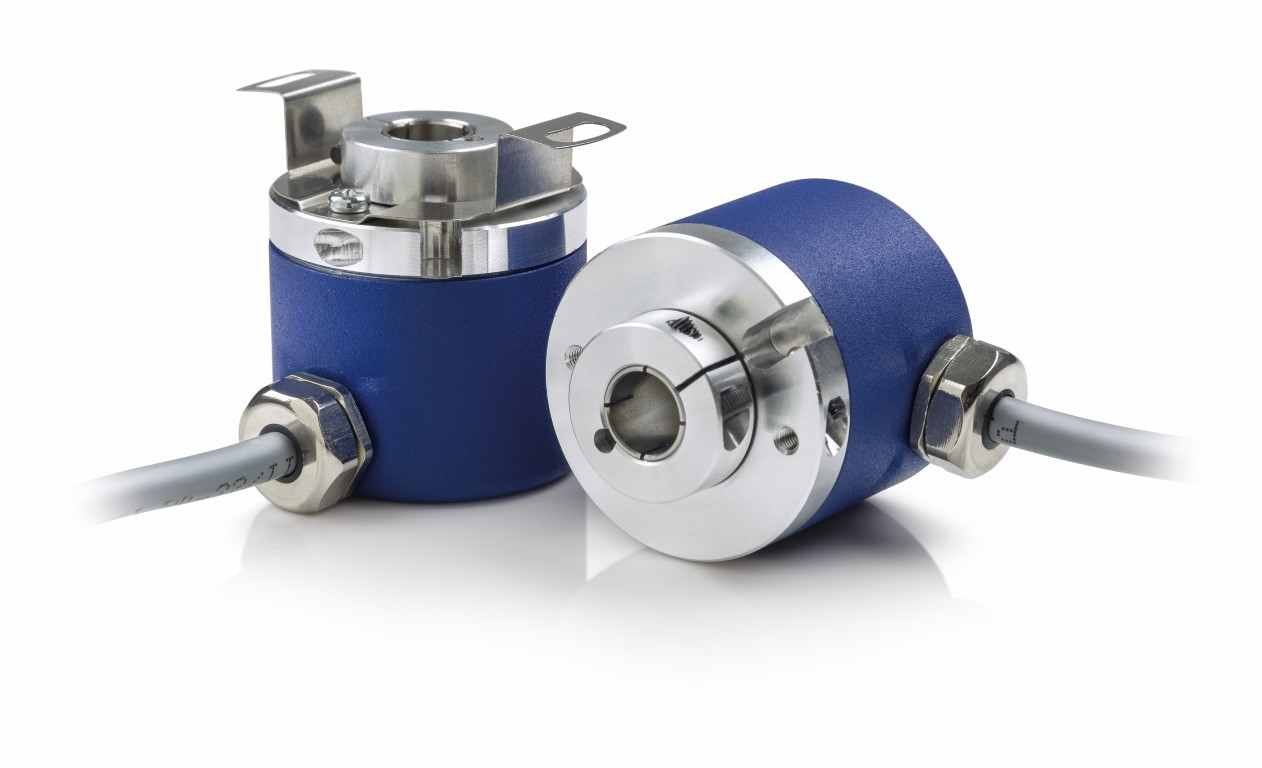

增量型旋转编码器 ER 38 F-G，微型 旋转 encoder for general application。技术原理：光电式；外径：40；轴径：4, 5, 6, 6,35, 8, 10；分辨率：100~14400；输出接口：Line Driver HTLLine Driver RS-422NPN Open CollectorPush Pull。
规格参数
| Tipology | Rotary with bearing |
| Category | Incrementals |
| Mechanics | Blind / Through hollow shaft |
| Technology | Optical |
| Size [mm] | 40 |
| Shaft [mm] | 4, 5, 6, 6,35, 8, 10 |
| Resolution [ppr] | Da 100A 14400 |
| Output interface | Line Driver HTLLine Driver RS-422NPN Open CollectorPush Pull |
| Hall signals | No |
| Markings / Certifications | CE / UKCA, UL / CSA |
| Operating temperature [°C] | -25 ... 85 |
分辨率：100~14400；输出接口：Line Driver HTLLine Driver RS-422NPN Open CollectorPush Pull；轴径：4, 5, 6, 6,35, 8, 10；技术原理：光电式；外径：40
