产品概述

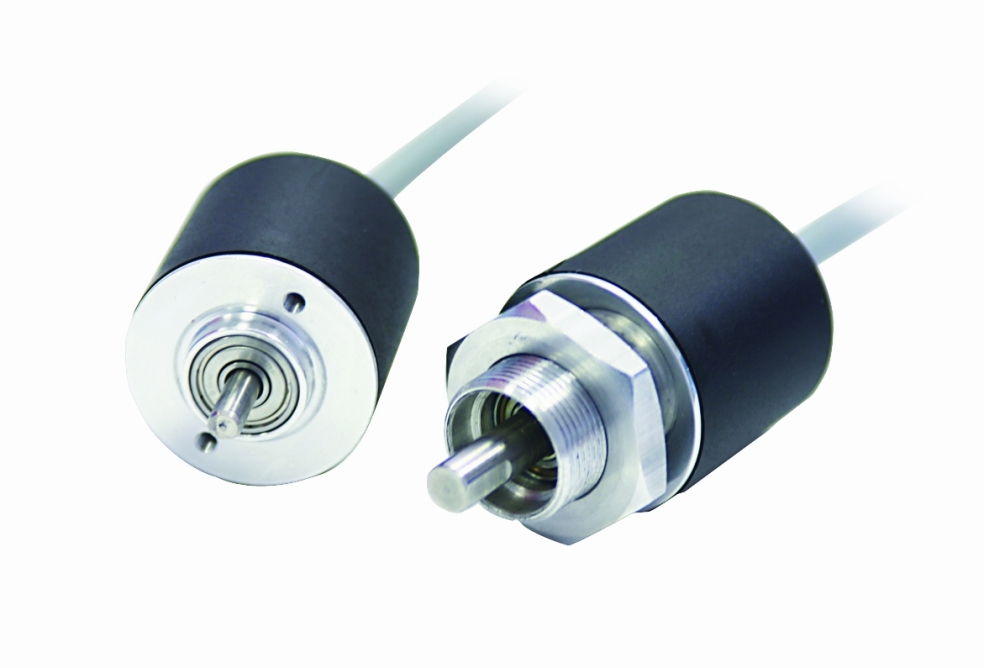

增量型旋转编码器 ER 30 E-H，微型光电式 encoder。技术原理：光电式；外径：30；轴径：4, 6；分辨率：100~2500；防护等级：54。

规格参数

Tipology	Rotary with bearing
Category	Incrementals
Mechanics	Solid shaft
Technology	Optical
Size [mm]	30
Shaft [mm]	4, 6
Resolution [ppr]	Da 100A 2500
IP	54
Output interface	Line Driver HTLLine Driver RS-422NPN Open CollectorPush Pull
Hall signals	No
Markings / Certifications	CE / UKCA, UL / CSA
Operating temperature [°C]	-25 ... 85

分辨率：100~2500；输出接口：Line Driver HTLLine Driver RS-422NPN Open CollectorPush Pull；防护等级：54；轴径：4, 6；技术原理：光电式
