ELTRAEML 50 F-G
产品概述

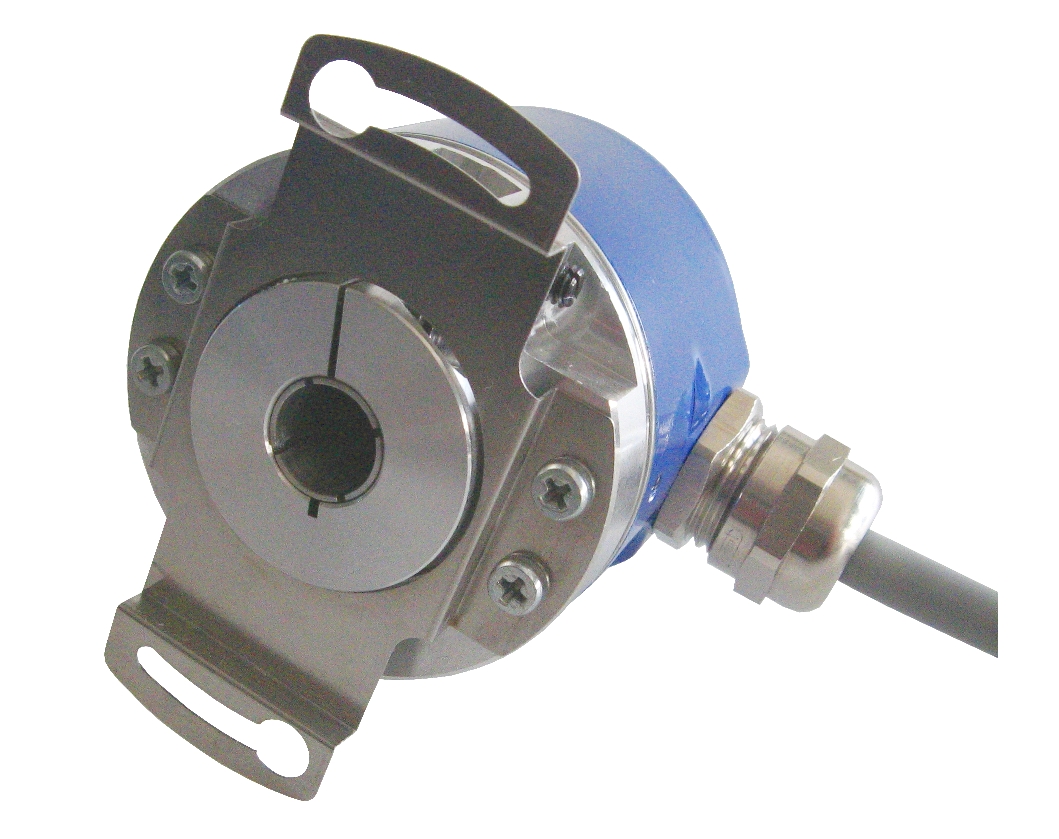

绝对值旋转编码器 EML 50 F-G，磁电式 绝对值 encoder with analogue output。技术原理：磁电式；外径：50；轴径：5, 6, 8, 10, 12, 14, 15；防护等级：65, 67；输出接口：Analog 0 … 10 VAnalog 0 … 20 mAAnalog 0 … 5 VAnalog 4 … 20 mA。
规格参数
| Tipology | Rotary with bearing |
| Category | Singleturn absolute |
| Mechanics | Blind / Through hollow shaft |
| Technology | Magnetic |
| Size [mm] | 50 |
| Shaft [mm] | 5, 6, 8, 10, 12, 14, 15 |
| Singleturn max resolution [bit] | 12 |
| IP | 65, 67 |
| Output interface | Analog 0 … 10 VAnalog 0 … 20 mAAnalog 0 … 5 VAnalog 4 … 20 mA |
| Markings / Certifications | CE / UKCA, UL / CSA |
| Operating temperature [°C] | -25 ... 85 |
输出接口：Analog 0 … 10 VAnalog 0 … 20 mAAnalog 0 … 5 VAnalog 4 … 20 mA；防护等级：65, 67；轴径：5, 6, 8, 10, 12, 14, 15；技术原理：磁电式；外径：50
