ELTRAEMIP 58 B-C
产品概述

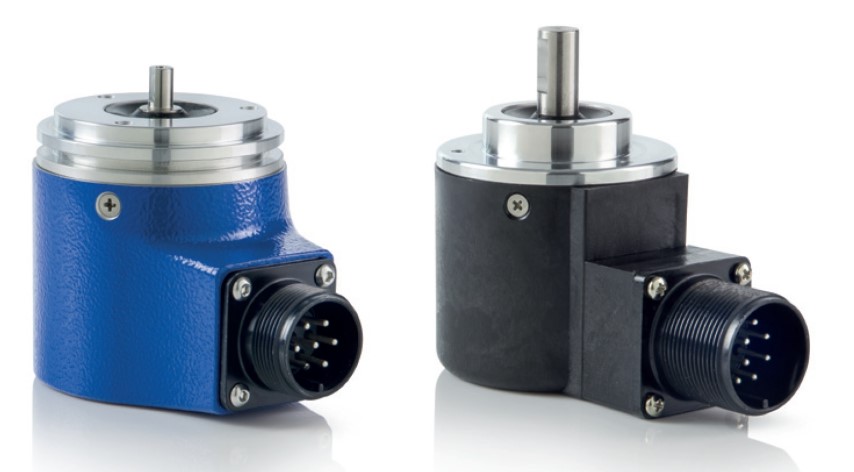

增量型旋转编码器 EMIP 58 B-C，实心轴 磁电式 增量型 encoder。技术原理：磁电式；外径：58, 60；轴径：6, 8, 9,52, 10；分辨率：1~20000；防护等级：54, 66。
规格参数
| Tipology | Rotary with bearing |
| Category | Incrementals |
| Mechanics | Solid shaft |
| Technology | Magnetic |
| Size [mm] | 58, 60 |
| Shaft [mm] | 6, 8, 9,52, 10 |
| Resolution [ppr] | Da 1A 20000 |
| IP | 54, 66 |
| Output interface | Line Driver HTLLine Driver RS-422 |
| Hall signals | No |
| Markings / Certifications | CE / UKCA, UL / CSA |
| Operating temperature [°C] | -25 ... 100 |
| Specials | Programmable |
分辨率：1~20000；输出接口：Line Driver HTLLine Driver RS-422；防护等级：54, 66；轴径：6, 8, 9,52, 10；技术原理：磁电式
