产品概述

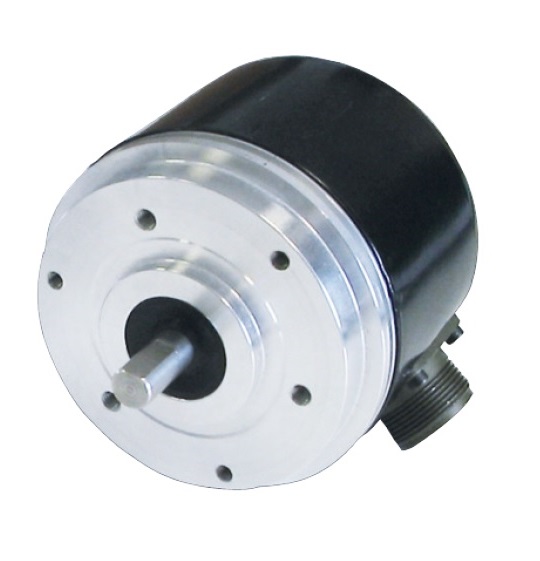

增量型旋转编码器 EMI 90-115 A，增量型旋转编码器。技术原理：磁电式；外径：115, 90；轴径：8, 9,52, 10, 11；分辨率：1~10000；输出接口：Line Driver HTLLine Driver RS-422NPN Open CollectorPush Pull。

规格参数

Tipology	Rotary with bearing
Category	Incrementals
Mechanics	Solid shaft
Technology	Magnetic
Size [mm]	115, 90
Shaft [mm]	8, 9,52, 10, 11
Resolution [ppr]	Da 1A 10000
Output interface	Line Driver HTLLine Driver RS-422NPN Open CollectorPush Pull
Hall signals	No
Markings / Certifications	CE / UKCA, UL / CSA
Operating temperature [°C]	-25 ... 85

分辨率：1~10000；输出接口：Line Driver HTLLine Driver RS-422NPN Open CollectorPush Pull；轴径：8, 9,52, 10, 11；技术原理：磁电式；外径：115, 90
