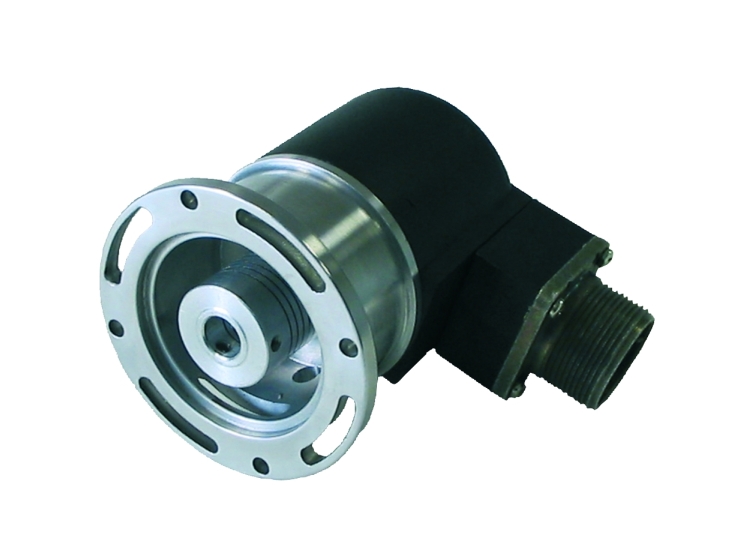

EMI 72 A-B 增量型 encoder for motor feedback and tachogenerator

EMI 72 A-B 增量型 encoder for motor feedback and tachogenerator
ELTRAEMI 72 A-B

产品概述

增量型旋转编码器 EMI 72 A-B，增量型 encoder for motor feedback and tachogenerator。技术原理：磁电式；外径：72；轴径：6, 8, 10；分辨率：1~10000；防护等级：54, 66。

规格参数

TipologyRotary with bearing
CategoryIncrementals
MechanicsBlind / Through hollow shaft
TechnologyMagnetic
Size [mm]72
Shaft [mm]6, 8, 10
Resolution [ppr]Da 1A 10000
IP54, 66
Output interfaceLine Driver HTLLine Driver RS-422NPN Open CollectorPush Pull
Hall signalsNo
Markings / CertificationsCE / UKCA, UL / CSA
Operating temperature [°C]-25 ... 85
分辨率：1~10000；输出接口：Line Driver HTLLine Driver RS-422NPN Open CollectorPush Pull；防护等级：54, 66；轴径：6, 8, 10；技术原理：磁电式
