ELTRAEMI 38 F-G
产品概述

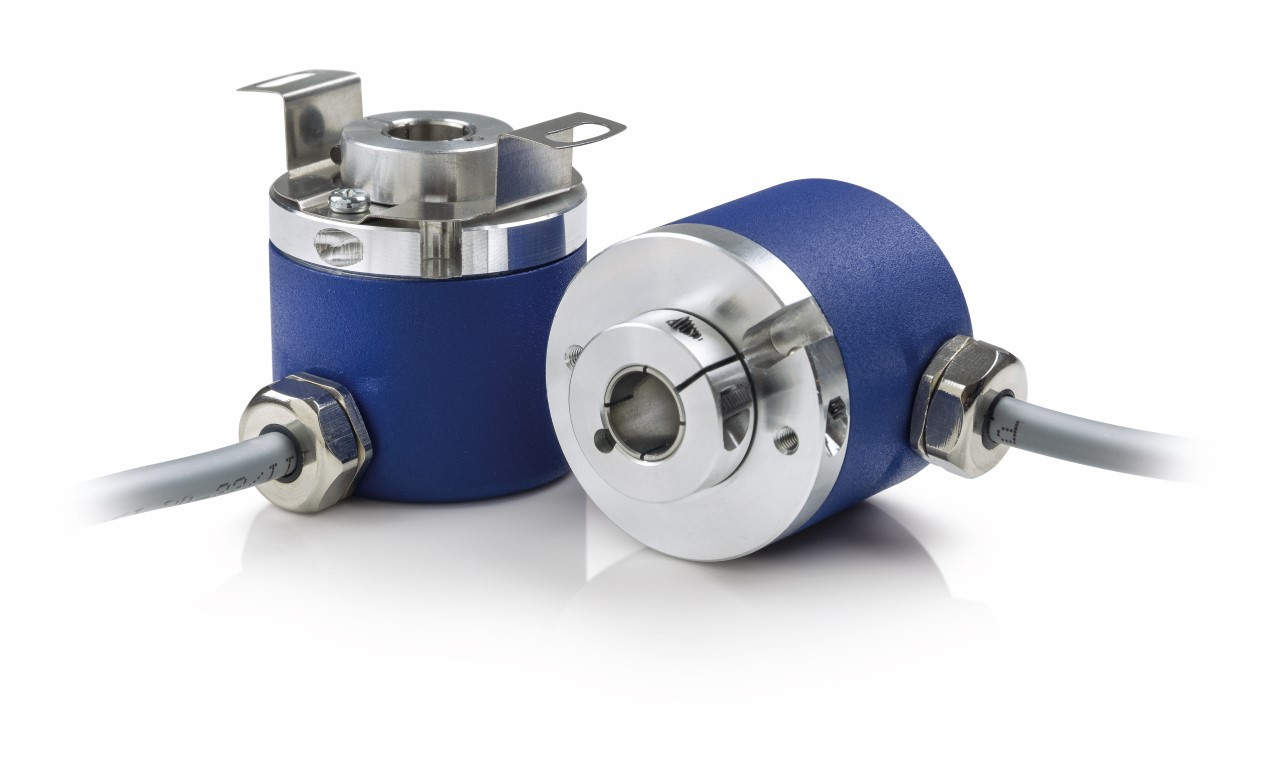

增量型旋转编码器 EMI 38 F-G，Blind 空心轴 磁电式 增量型 编码器系列。技术原理：磁电式；外径：40；轴径：4, 5, 6, 6,35, 8, 10；分辨率：1~10000；防护等级：66, 67。
规格参数
| Tipology | Rotary with bearing |
| Category | Incrementals |
| Mechanics | Blind / Through hollow shaft |
| Technology | Magnetic |
| Size [mm] | 40 |
| Shaft [mm] | 4, 5, 6, 6,35, 8, 10 |
| Resolution [ppr] | Da 1A 10000 |
| IP | 66, 67 |
| Output interface | Line Driver HTLLine Driver RS-422NPN Open CollectorPush Pull |
| Hall signals | No |
| Markings / Certifications | CE / UKCA, UL / CSA |
| Operating temperature [°C] | -25 ... 100 |
分辨率：1~10000；输出接口：Line Driver HTLLine Driver RS-422NPN Open CollectorPush Pull；防护等级：66, 67；轴径：4, 5, 6, 6,35, 8, 10；技术原理：磁电式
