产品概述

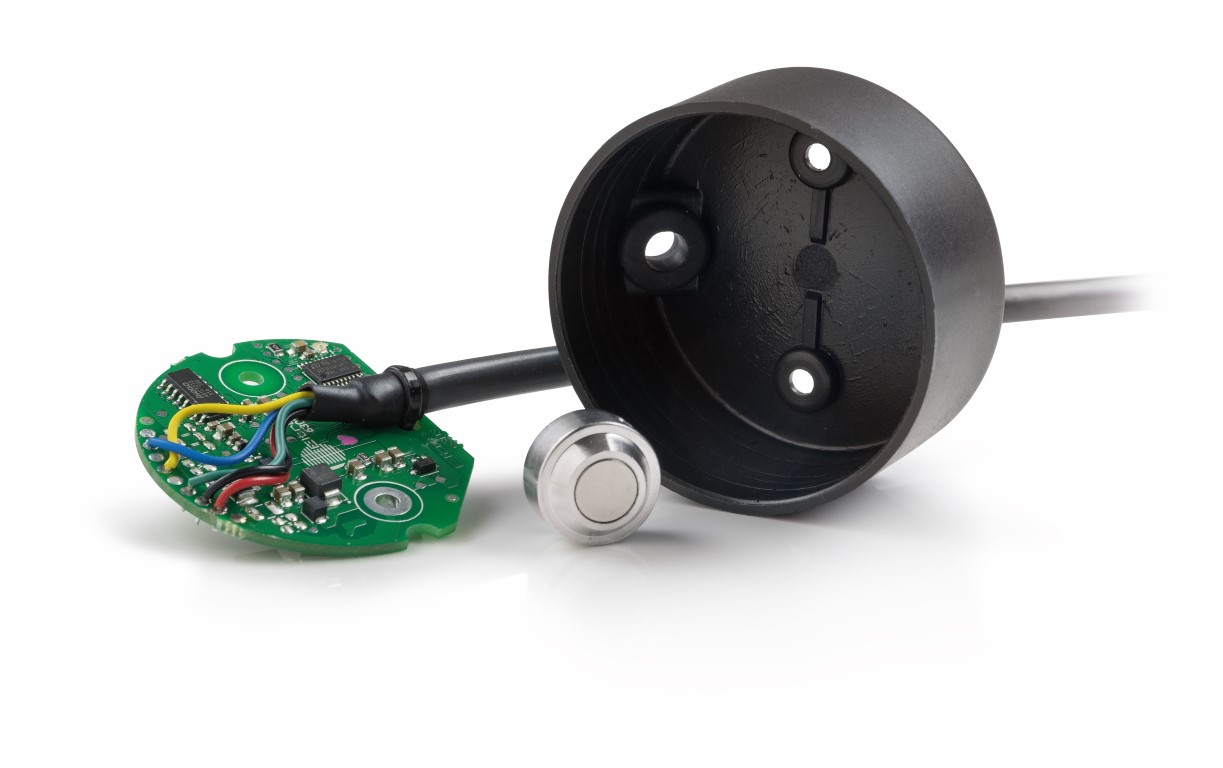

增量型旋转编码器 EMI 30 M，磁电式增量型 kit 编码器系列。技术原理：磁电式；外径：53；轴径：6, 6,35, 8, 10；分辨率：1~10000；防护等级：54。

规格参数

Tipology	Rotary without bearing
Category	Incrementals
Mechanics	Blind / Through hollow shaft
Technology	Magnetic
Size [mm]	53
Shaft [mm]	6, 6,35, 8, 10
Resolution [ppr]	Da 1A 10000
IP	54
Output interface	Line Driver HTLLine Driver RS-422NPN Open CollectorPush Pull
Hall signals	No
Markings / Certifications	CE / UKCA, UL / CSA
Operating temperature [°C]	-20 ... 100

分辨率：1~10000；输出接口：Line Driver HTLLine Driver RS-422NPN Open CollectorPush Pull；防护等级：54；轴径：6, 6,35, 8, 10；技术原理：磁电式
