ELTRAEMI 30 E-H
产品概述

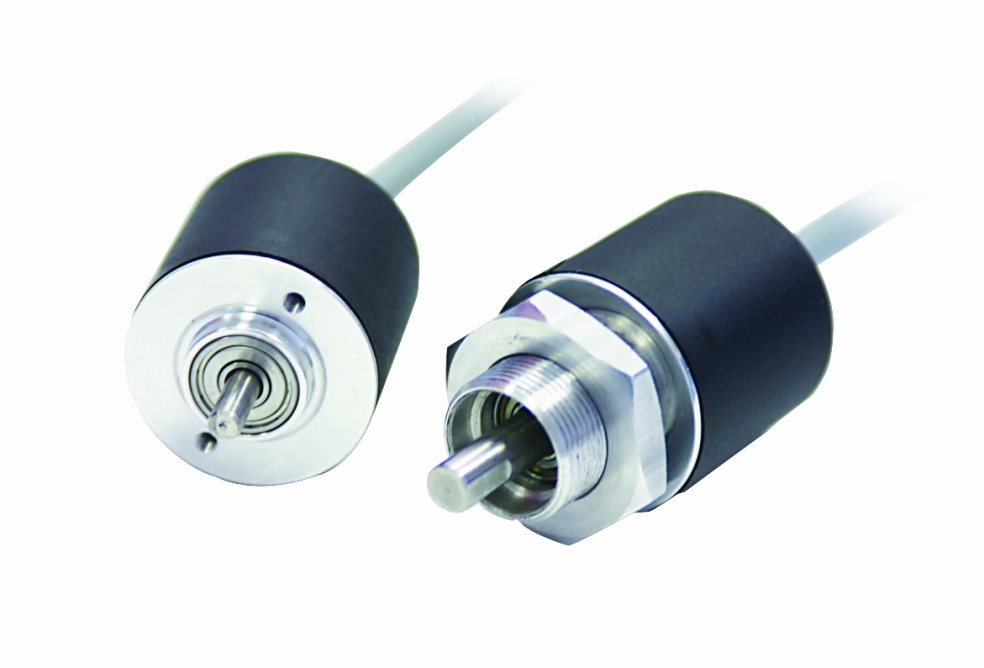

增量型旋转编码器 EMI 30 E-H，微型 增量型 encoder。技术原理：磁电式；外径：30；轴径：4, 6；分辨率：1~10000；防护等级：54。
规格参数
| Tipology | Rotary with bearing |
| Category | Incrementals |
| Mechanics | Solid shaft |
| Technology | Magnetic |
| Size [mm] | 30 |
| Shaft [mm] | 4, 6 |
| Resolution [ppr] | Da 1A 10000 |
| IP | 54 |
| Output interface | Line Driver HTLLine Driver RS-422NPN Open CollectorPush Pull |
| Hall signals | No |
| Markings / Certifications | CE / UKCA, UL / CSA |
| Operating temperature [°C] | -25 ... 85 |
分辨率：1~10000；输出接口：Line Driver HTLLine Driver RS-422NPN Open CollectorPush Pull；防护等级：54；轴径：4, 6；技术原理：磁电式
