ELTRAEL-ER 53 A-B
产品概述

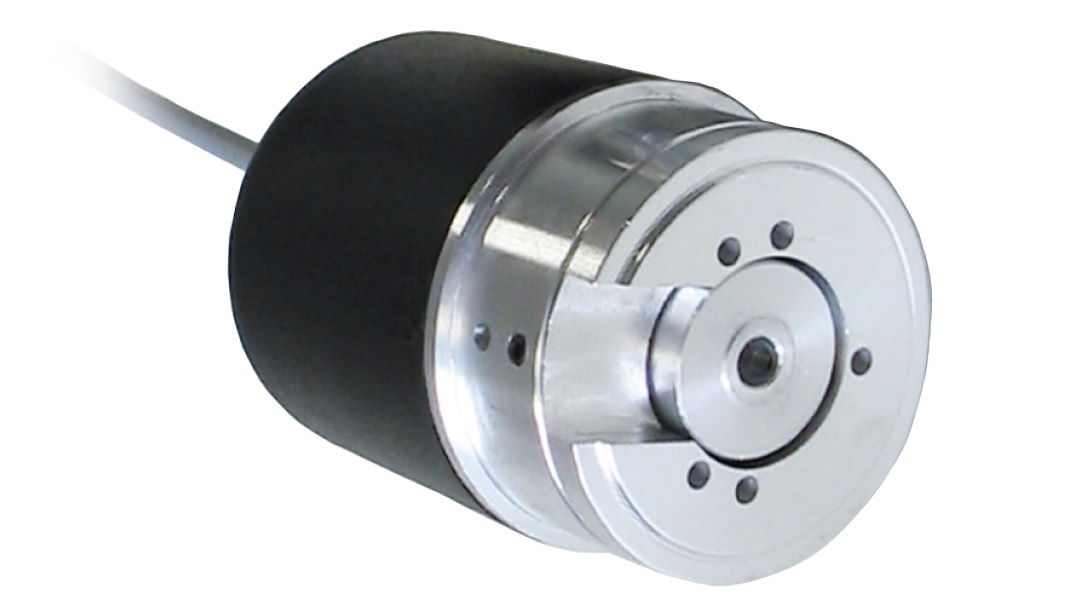

增量型旋转编码器 EL-ER 53 A-B，High resolution 旋转 增量型 编码器系列。技术原理：光电式；外径：58；轴径：6, 8, 10；分辨率：1~20000；防护等级：54, 64。
规格参数
| Tipology | Rotary with bearing |
| Category | Incrementals |
| Mechanics | Blind / Through hollow shaft |
| Technology | Optical |
| Size [mm] | 58 |
| Shaft [mm] | 6, 8, 10 |
| Resolution [ppr] | Da 1A 20000 |
| IP | 54, 64 |
| Output interface | Line Driver HTLLine Driver RS-422NPN Open CollectorPush Pull |
| Hall signals | No |
| Markings / Certifications | CE / UKCA, UL / CSA |
| Operating temperature [°C] | -25 ... 85 |
分辨率：1~20000；输出接口：Line Driver HTLLine Driver RS-422NPN Open CollectorPush Pull；防护等级：54, 64；轴径：6, 8, 10；技术原理：光电式
