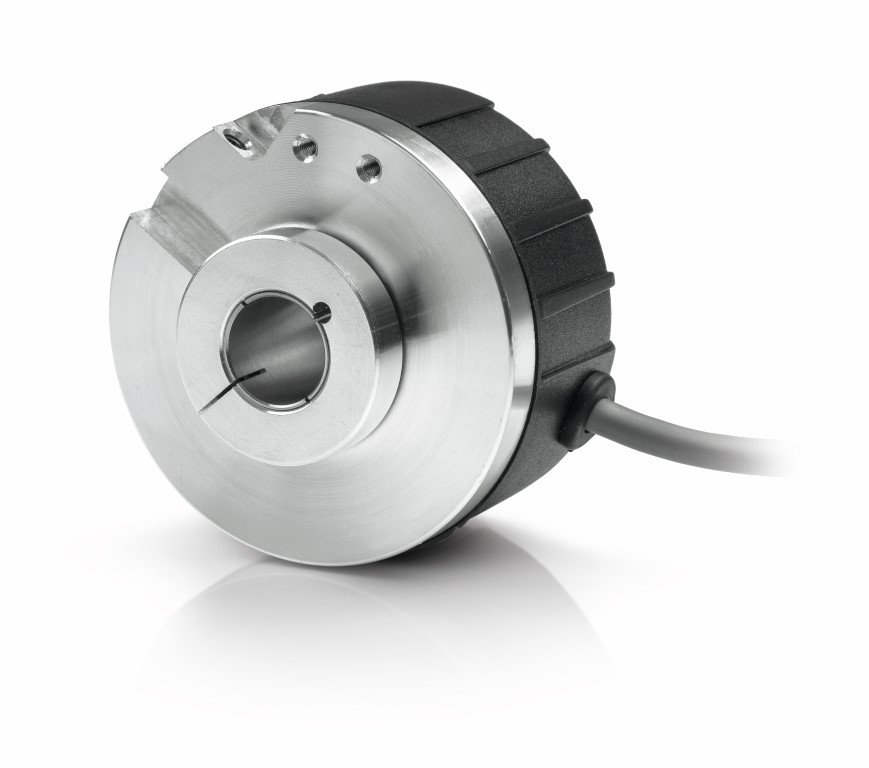

ELTRAEL 63 FB-GB-PB-PBF-PC-PCF
产品概述
增量型旋转编码器 EL 63 FB-GB-PB-PBF-PC-PCF，旋转 增量型 encoder。技术原理：光电式；外径：64；轴径：8, 10, 12, 14, 15；分辨率：1~10000；防护等级：54。
规格参数
| Tipology | Rotary with bearing |
| Category | Incrementals |
| Mechanics | Blind / Through hollow shaft |
| Technology | Optical |
| Size [mm] | 64 |
| Shaft [mm] | 8, 10, 12, 14, 15 |
| Resolution [ppr] | Da 1A 10000 |
| IP | 54 |
| Output interface | Line Driver HTLLine Driver RS-422NPN Open CollectorPush Pull |
| Hall signals | No |
| Markings / Certifications | CE / UKCA, UL / CSA |
| Operating temperature [°C] | -10 ... 60 |
分辨率：1~10000；输出接口：Line Driver HTLLine Driver RS-422NPN Open CollectorPush Pull；防护等级：54；轴径：8, 10, 12, 14, 15；技术原理：光电式
