ELTRAEL 49 C-P
产品概述

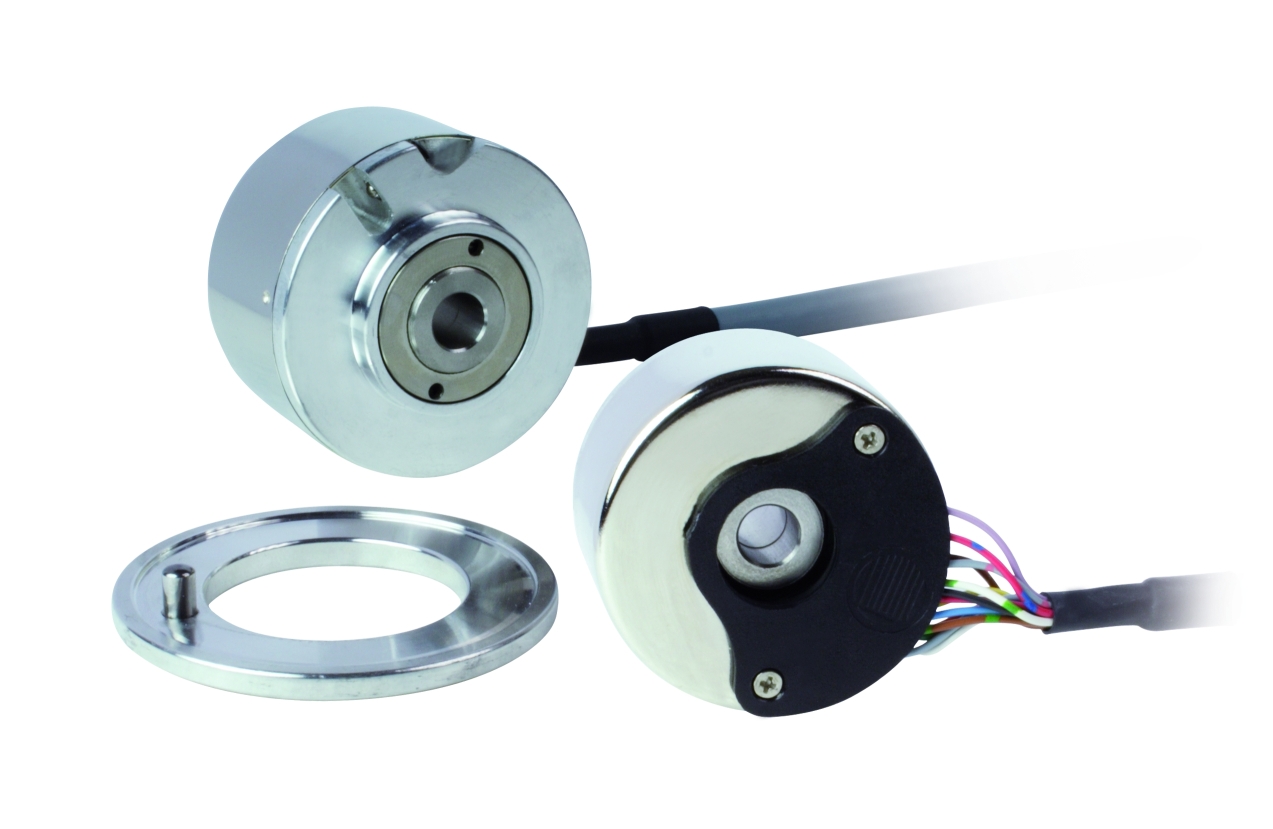

增量型旋转编码器 EL 49 C-P，光电式 增量型 encoder for AC servomotor。技术原理：光电式；外径：49；轴径：6, 8, 9,52, 10, 12, 12,7；分辨率：1~2500；防护等级：40。
规格参数
| Tipology | Rotary with bearing |
| Category | Incrementals |
| Mechanics | Blind / Through hollow shaft |
| Technology | Optical |
| Size [mm] | 49 |
| Shaft [mm] | 6, 8, 9,52, 10, 12, 12,7 |
| Resolution [ppr] | Da 1A 2500 |
| IP | 40 |
| Output interface | Line Driver HTLNPN Open CollectorPush Pull |
| Hall signals | No |
| Markings / Certifications | CE / UKCA, UL / CSA |
| Operating temperature [°C] | -20 ... 100 |
分辨率：1~2500；输出接口：Line Driver HTLNPN Open CollectorPush Pull；防护等级：40；轴径：6, 8, 9,52, 10, 12, 12,7；技术原理：光电式
