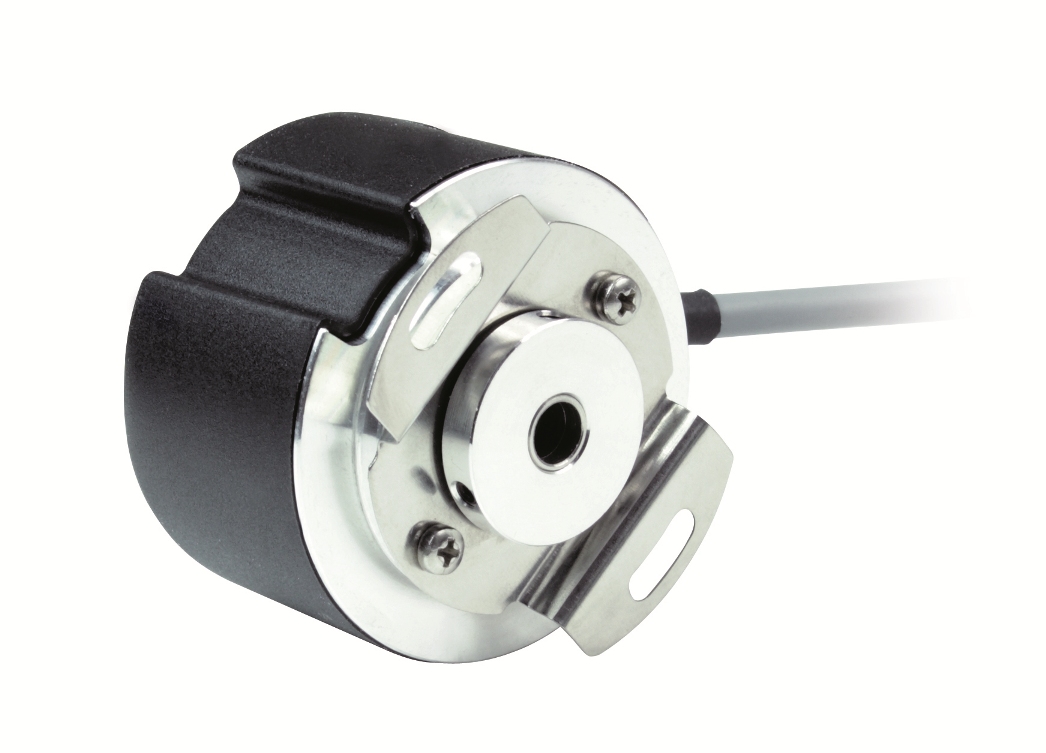

ELTRAEL 48 C-P
产品概述
增量型旋转编码器 EL 48 C-P，增量型旋转编码器 for feedback systems。技术原理：光电式；外径：49；轴径：6, 8；分辨率：100~2048；防护等级：30。
规格参数
| Tipology | Rotary with bearing |
| Category | Incrementals |
| Mechanics | Blind / Through hollow shaft |
| Technology | Optical |
| Size [mm] | 49 |
| Shaft [mm] | 6, 8 |
| Resolution [ppr] | Da 100A 2048 |
| IP | 30 |
| Output interface | Line Driver HTLNPN Open CollectorPush Pull |
| Hall signals | No |
| Markings / Certifications | CE / UKCA, UL / CSA |
| Operating temperature [°C] | -20 ... 85 |
分辨率：100~2048；输出接口：Line Driver HTLNPN Open CollectorPush Pull；防护等级：30；轴径：6, 8；技术原理：光电式
