ELTRAEL 120 P
产品概述

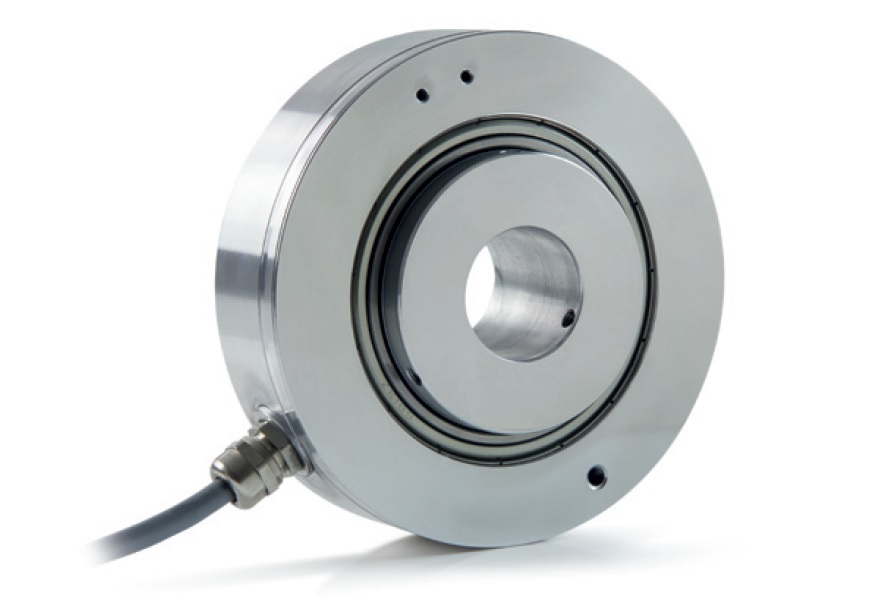

增量型旋转编码器 EL 120 P，增量型 encoder with wide bore diameter。技术原理：光电式；外径：120；轴径：40, 50, 60；分辨率：2048~400；防护等级：54。
规格参数
| Tipology | Rotary with bearing |
| Category | Incrementals |
| Mechanics | Blind / Through hollow shaft |
| Technology | Optical |
| Size [mm] | 120 |
| Shaft [mm] | 40, 50, 60 |
| Resolution [ppr] | Da 2048A 400 |
| IP | 54 |
| Output interface | Line Driver HTLLine Driver RS-422Push Pull |
| Hall signals | No |
| Markings / Certifications | CE / UKCA, UL / CSA |
| Operating temperature [°C] | 0 ... 60 |
分辨率：2048~400；输出接口：Line Driver HTLLine Driver RS-422Push Pull；防护等级：54；轴径：40, 50, 60；技术原理：光电式
