ELTRAEH-EL 88 P
产品概述

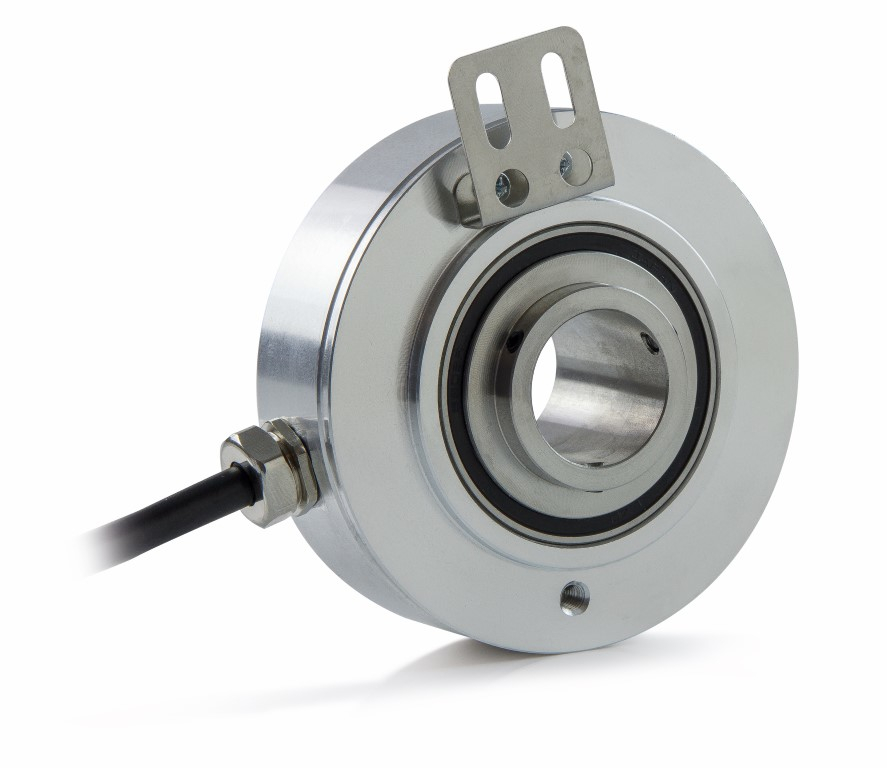

增量型旋转编码器 EH-EL 88 P，旋转 encoder for asynchronous motors。技术原理：光电式；外径：88；轴径：25, 30；分辨率：2~2500；防护等级：65。
规格参数
| Tipology | Rotary with bearing |
| Category | Incrementals |
| Mechanics | Blind / Through hollow shaft |
| Technology | Optical |
| Size [mm] | 88 |
| Shaft [mm] | 25, 30 |
| Resolution [ppr] | Da 2A 2500 |
| IP | 65 |
| Output interface | Line Driver HTLLine Driver RS-422Push Pull |
| Hall signals | No |
| Markings / Certifications | CE / UKCA, UL / CSA |
| Operating temperature [°C] | -10 ... 70 |
分辨率：2~2500；输出接口：Line Driver HTLLine Driver RS-422Push Pull；防护等级：65；轴径：25, 30；技术原理：光电式
