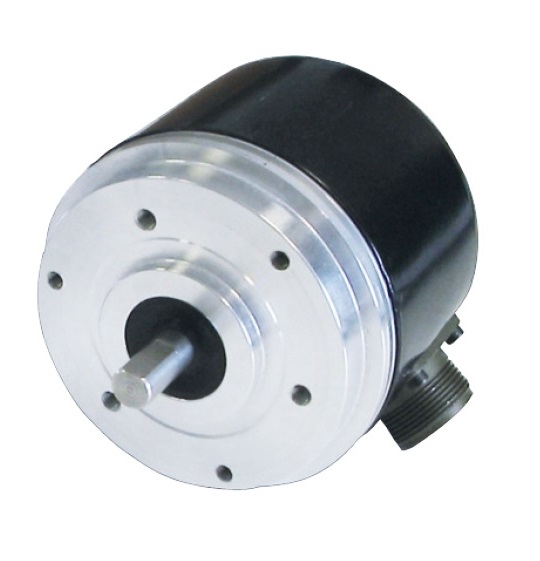

EH 90-115 A-R 增量型旋转编码器 for critical environments

EH 90-115 A-R 增量型旋转编码器 for critical environments
ELTRAEH 90-115 A-R

产品概述

增量型旋转编码器 EH 90-115 A-R，增量型旋转编码器 for critical environments。技术原理：光电式；外径：115, 90；轴径：8, 9,52, 10, 11；分辨率：200~2048；防护等级：54, 66。

规格参数

TipologyRotary with bearing
CategoryIncrementals
MechanicsSolid shaft
TechnologyOptical
Size [mm]115, 90
Shaft [mm]8, 9,52, 10, 11
Resolution [ppr]Da 200A 2048
IP54, 66
Output interfaceLine Driver HTLLine Driver RS-422NPN Open CollectorPush Pull
Hall signalsNo
Markings / CertificationsCE / UKCA, UL / CSA
Operating temperature [°C]-10 ... 60
SpecialsCentrifugal relay, Double electronics, Double resolution
分辨率：200~2048；输出接口：Line Driver HTLLine Driver RS-422NPN Open CollectorPush Pull；防护等级：54, 66；轴径：8, 9,52, 10, 11；技术原理：光电式
