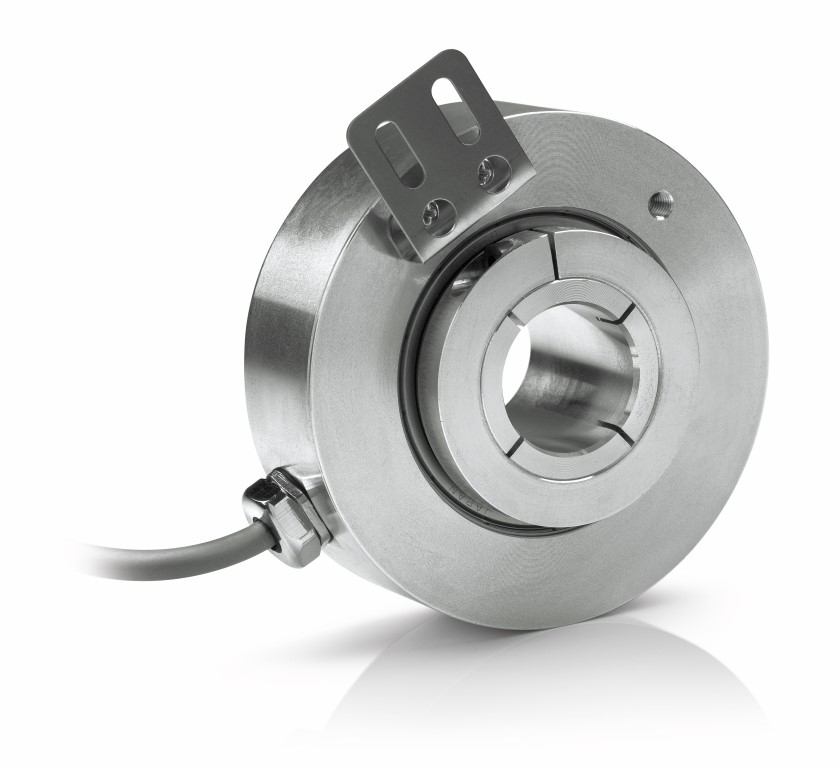

ELTRAEH 88 PE-PET
产品概述
增量型旋转编码器 EH 88 PE-PET，增量型 encoder for asynchronous motors。技术原理：光电式；外径：88；轴径：25, 30, 35, 38, 40；分辨率：2500~500；防护等级：54。
规格参数
| Tipology | Rotary with bearing |
| Category | Incrementals |
| Mechanics | Blind / Through hollow shaft |
| Technology | Optical |
| Size [mm] | 88 |
| Shaft [mm] | 25, 30, 35, 38, 40 |
| Resolution [ppr] | Da 2500A 500 |
| IP | 54 |
| Output interface | Line Driver HTLLine Driver RS-422Push Pull |
| Hall signals | No |
| Markings / Certifications | CE / UKCA, UL / CSA |
| Operating temperature [°C] | -30 ... 85 |
分辨率：2500~500；输出接口：Line Driver HTLLine Driver RS-422Push Pull；防护等级：54；轴径：25, 30, 35, 38, 40；技术原理：光电式
