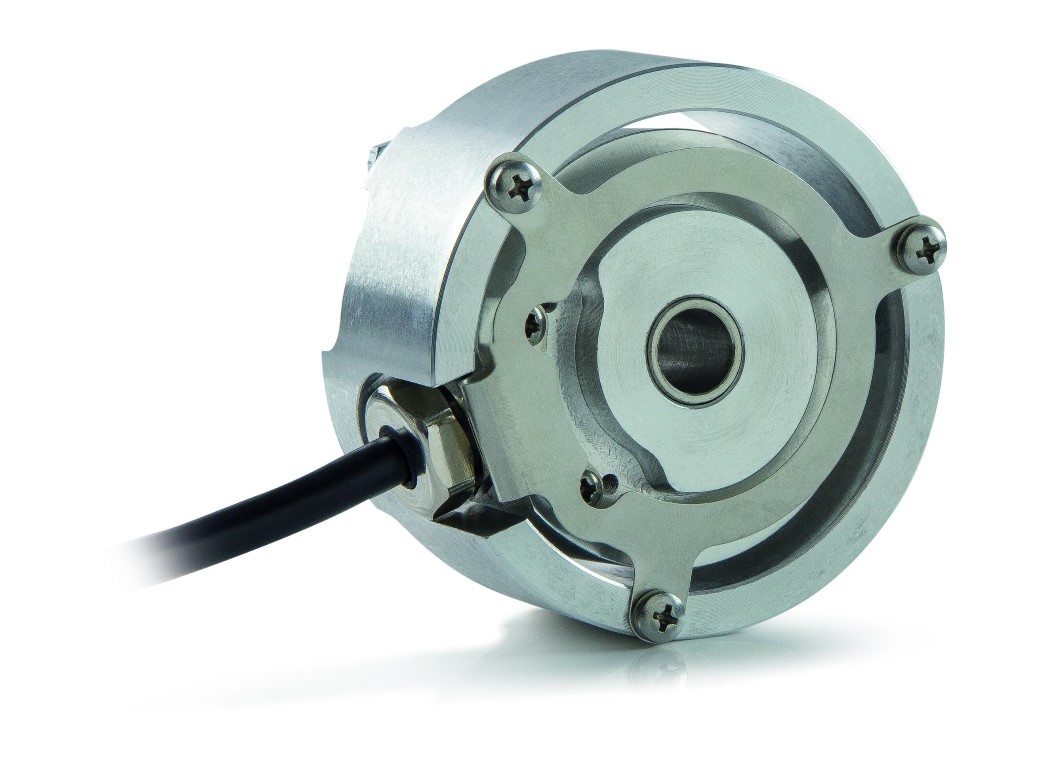

ELTRAEH 50 FA-FP
产品概述
增量型旋转编码器 EH 50 FA-FP，Reflective 光电式 增量型 encoder。技术原理：光电式；外径：50；轴径：8, 10；分辨率：100~1024；防护等级：65。
规格参数
| Tipology | Rotary with bearing |
| Category | Incrementals |
| Mechanics | Blind / Through hollow shaft |
| Technology | Optical |
| Size [mm] | 50 |
| Shaft [mm] | 8, 10 |
| Resolution [ppr] | Da 100A 1024 |
| IP | 65 |
| Output interface | Line Driver HTLLine Driver RS-422Push Pull |
| Hall signals | No |
| Markings / Certifications | CE / UKCA, UL / CSA |
| Operating temperature [°C] | -40 ... 100 |
分辨率：100~1024；输出接口：Line Driver HTLLine Driver RS-422Push Pull；防护等级：65；轴径：8, 10；技术原理：光电式
