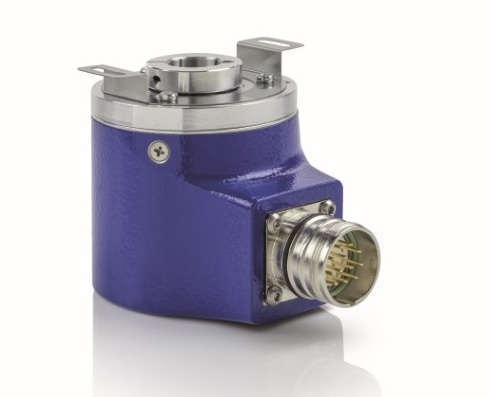

EAR 58-63 F-G Singleturn 绝对值 encoder Bit Parallel / SSI

EAR 58-63 F-G Singleturn 绝对值 encoder Bit Parallel / SSI
ELTRAEAR 58-63 F-G

产品概述

绝对值旋转编码器 EAR 58-63 F-G，Singleturn 绝对值 encoder Bit Parallel / SSI。技术原理：光电式；外径：60；轴径：6, 8, 9,52, 10, 11, 12, 14, 15；防护等级：65, 67；输出接口：ParallelSSI。

规格参数

TipologyRotary with bearing
CategorySingleturn absolute
MechanicsBlind / Through hollow shaft
TechnologyOptical
Size [mm]60
Shaft [mm]6, 8, 9,52, 10, 11, 12, 14, 15
Singleturn max resolution [bit]25
IP65, 67
Output interfaceParallelSSI
Markings / CertificationsCE / UKCA, UL / CSA
Operating temperature [°C]-40 ... 85
输出接口：ParallelSSI；防护等级：65, 67；轴径：6, 8, 9,52, 10, 11, 12, 14, 15；技术原理：光电式；外径：60
