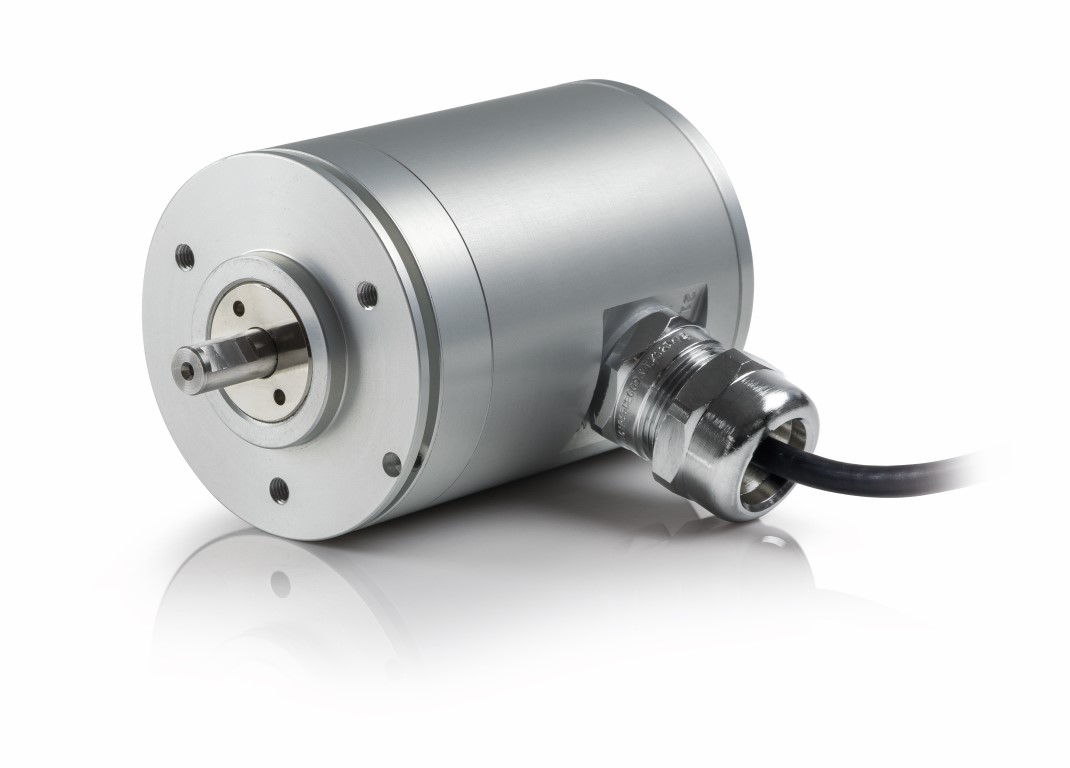

ELTRAEAMX 80 A-D
产品概述
绝对值旋转编码器 EAMX 80 A-D，Flameproof multiturn 绝对值 编码器系列。技术原理：光电式；外径：80；轴径：10；防护等级：65；输出接口：SSI。
规格参数
| Tipology | Rotary with bearing |
| Category | Multiturn absolute |
| Mechanics | Solid shaft |
| Technology | Optical |
| Size [mm] | 80 |
| Shaft [mm] | 10 |
| Singleturn max resolution [bit] | 25 |
| Max multiturn resolution [bit] | 15 |
| IP | 65 |
| Output interface | SSI |
| Markings / Certifications | ATEX, CE / UKCA, UL / CSA |
| Operating temperature [°C] | 0 ... 50 |
输出接口：SSI；防护等级：65；轴径：10；技术原理：光电式；外径：80
