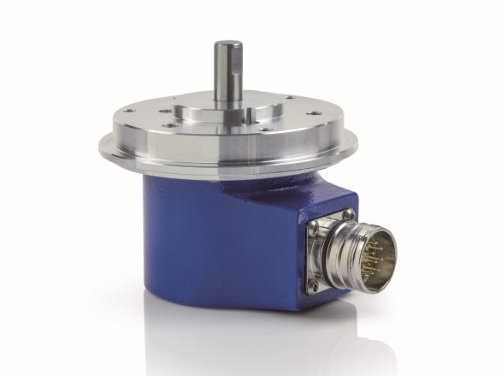

EAMR 90-115 A Multi-turn 绝对值 encoder with parallel/SSI output

EAMR 90-115 A Multi-turn 绝对值 encoder with parallel/SSI output
ELTRAEAMR 90-115 A

产品概述

绝对值旋转编码器 EAMR 90-115 A，Multi-turn 绝对值 encoder with parallel/SSI output。技术原理：光电式；外径：115, 90；轴径：9,52, 10；防护等级：65, 67；输出接口：ParallelSSI。

规格参数

TipologyRotary with bearing
CategoryMultiturn absolute
MechanicsSolid shaft
TechnologyOptical
Size [mm]115, 90
Shaft [mm]9,52, 10
Singleturn max resolution [bit]25
Max multiturn resolution [bit]15
IP65, 67
Output interfaceParallelSSI
Markings / CertificationsCE / UKCA, UL / CSA
Operating temperature [°C]-40 ... 100
输出接口：ParallelSSI；防护等级：65, 67；轴径：9,52, 10；技术原理：光电式；外径：115, 90
