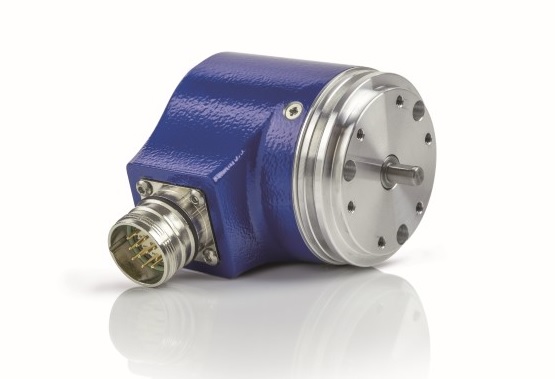

EAMR 58-63 A-B-C-D-E Multiturn 绝对值 encoder Bit Parallel / SSI

EAMR 58-63 A-B-C-D-E Multiturn 绝对值 encoder Bit Parallel / SSI
ELTRAEAMR 58-63 A-B-C-D-E

产品概述

绝对值旋转编码器 EAMR 58-63 A-B-C-D-E，Multiturn 绝对值 encoder Bit Parallel / SSI。技术原理：光电式；外径：60, 64；轴径：6, 9,52, 10；防护等级：65, 67；输出接口：ParallelSSI。

规格参数

TipologyRotary with bearing
CategoryMultiturn absolute
MechanicsSolid shaft
TechnologyOptical
Size [mm]60, 64
Shaft [mm]6, 9,52, 10
Singleturn max resolution [bit]25
Max multiturn resolution [bit]15
IP65, 67
Output interfaceParallelSSI
Markings / CertificationsCE / UKCA, UL / CSA
Operating temperature [°C]-40 ... 100
输出接口：ParallelSSI；防护等级：65, 67；轴径：6, 9,52, 10；技术原理：光电式；外径：60, 64
