ELTRAEAM 36 F-G
产品概述

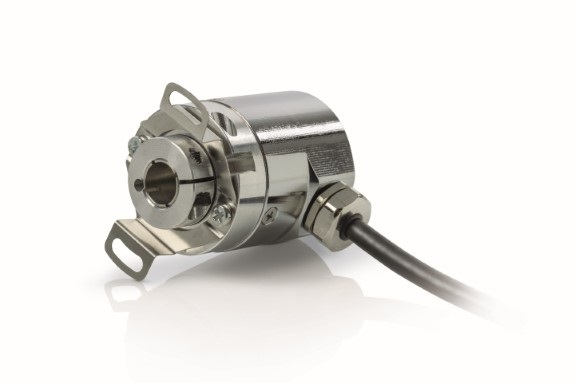

绝对值旋转编码器 EAM 36 F-G，磁电式 绝对值 encoder with Energy Harvesting technology。技术原理：磁电式；外径：36；轴径：4, 5, 6, 6,35, 8, 9,52, 10；防护等级：65, 67；输出接口：SSI。
规格参数
| Tipology | Rotary with bearing |
| Category | Multiturn absolute |
| Mechanics | Blind / Through hollow shaft |
| Technology | Magnetic |
| Size [mm] | 36 |
| Shaft [mm] | 4, 5, 6, 6,35, 8, 9,52, 10 |
| Singleturn max resolution [bit] | 18 |
| Max multiturn resolution [bit] | 17 |
| IP | 65, 67 |
| Output interface | SSI |
| Markings / Certifications | CE / UKCA, UL / CSA |
| Operating temperature [°C] | -30 ... 100 |
输出接口：SSI；防护等级：65, 67；轴径：4, 5, 6, 6,35, 8, 9,52, 10；技术原理：磁电式；外径：36
