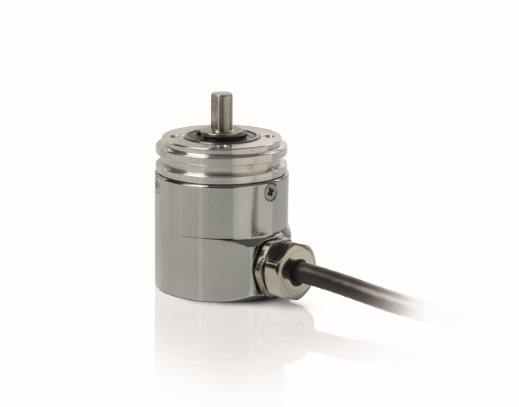

EAM 36 B 磁电式 绝对值 encoder with Energy Harvesting technology

EAM 36 B 磁电式 绝对值 encoder with Energy Harvesting technology
ELTRAEAM 36 B

产品概述

绝对值旋转编码器 EAM 36 B，磁电式 绝对值 encoder with Energy Harvesting technology。技术原理：磁电式；外径：36；轴径：6；防护等级：65, 67；输出接口：SSI。

规格参数

TipologyRotary with bearing
CategoryMultiturn absolute
MechanicsSolid shaft
TechnologyMagnetic
Size [mm]36
Shaft [mm]6
Singleturn max resolution [bit]18
Max multiturn resolution [bit]17
IP65, 67
Output interfaceSSI
Markings / CertificationsCE / UKCA, UL / CSA
Operating temperature [°C]-30 ... 100
输出接口：SSI；防护等级：65, 67；轴径：6；技术原理：磁电式；外径：36
