ELTRAEAM 110 M
产品概述

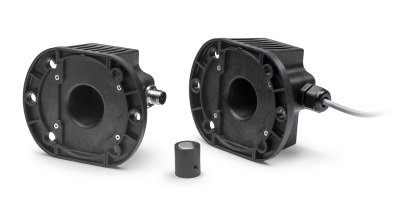

绝对值旋转编码器 EAM 110 M，绝对值 磁电式 multiturn encoder。技术原理：磁电式；外径：110；轴径：12；防护等级：65；输出接口：Modbus RTU。
规格参数
| Tipology | Rotary without bearing |
| Category | Multiturn absolute |
| Mechanics | Blind / Through hollow shaft |
| Technology | Magnetic |
| Size [mm] | 110 |
| Shaft [mm] | 12 |
| Singleturn max resolution [bit] | 9 |
| Max multiturn resolution [bit] | 16 |
| IP | 65 |
| Output interface | Modbus RTU |
| Markings / Certifications | CE / UKCA |
| Operating temperature [°C] | -20 ... 70 |
输出接口：Modbus RTU；防护等级：65；轴径：12；技术原理：磁电式；外径：110
