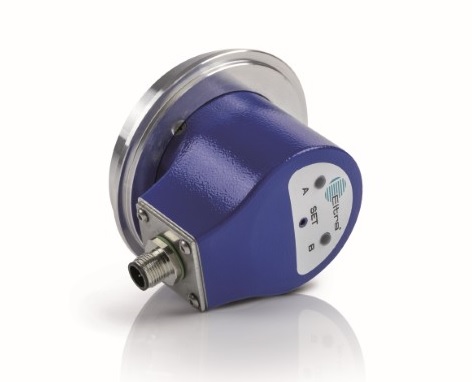

ELTRAEAL 90-115 A
产品概述
绝对值旋转编码器 EAL 90-115 A，Singleturn 绝对值 encoder Analogue。技术原理：光电式；外径：115, 90；轴径：9,52, 10；防护等级：65, 67；输出接口：Analog 0 … 10 VAnalog 0 … 20 mAAnalog 0 … 5 VAnalog 4 … 20 mA。
规格参数
| Tipology | Rotary with bearing |
| Category | Singleturn absolute |
| Mechanics | Solid shaft |
| Technology | Optical |
| Size [mm] | 115, 90 |
| Shaft [mm] | 9,52, 10 |
| Singleturn max resolution [bit] | 16 |
| IP | 65, 67 |
| Output interface | Analog 0 … 10 VAnalog 0 … 20 mAAnalog 0 … 5 VAnalog 4 … 20 mA |
| Markings / Certifications | CE / UKCA, UL / CSA |
| Operating temperature [°C] | -20 ... 85 |
输出接口：Analog 0 … 10 VAnalog 0 … 20 mAAnalog 0 … 5 VAnalog 4 … 20 mA；防护等级：65, 67；轴径：9,52, 10；技术原理：光电式；外径：115, 90
