ELTRAEAL 58-63 F-G
产品概述

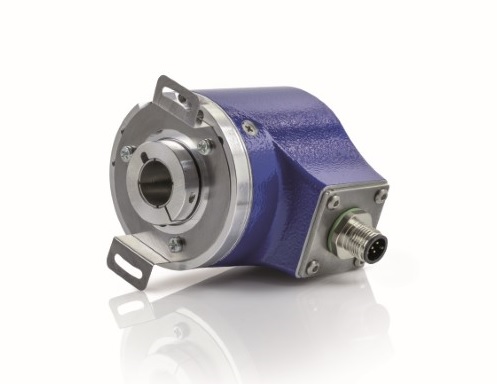

绝对值旋转编码器 EAL 58-63 F-G，Singleturn 绝对值 encoder Analogue。技术原理：光电式；外径：60；轴径：6, 8, 9,52, 10, 11, 12, 14, 15；防护等级：65, 67；输出接口：Analog 0 … 10 VAnalog 0 … 20 mAAnalog 0 … 5 VAnalog 4 … 20 mA。
规格参数
| Tipology | Rotary with bearing |
| Category | Singleturn absolute |
| Mechanics | Blind / Through hollow shaft |
| Technology | Optical |
| Size [mm] | 60 |
| Shaft [mm] | 6, 8, 9,52, 10, 11, 12, 14, 15 |
| Singleturn max resolution [bit] | 16 |
| IP | 65, 67 |
| Output interface | Analog 0 … 10 VAnalog 0 … 20 mAAnalog 0 … 5 VAnalog 4 … 20 mA |
| Markings / Certifications | CE / UKCA, UL / CSA |
| Operating temperature [°C] | -20 ... 85 |
输出接口：Analog 0 … 10 VAnalog 0 … 20 mAAnalog 0 … 5 VAnalog 4 … 20 mA；防护等级：65, 67；轴径：6, 8, 9,52, 10, 11, 12, 14, 15；技术原理：光电式；外径：60
