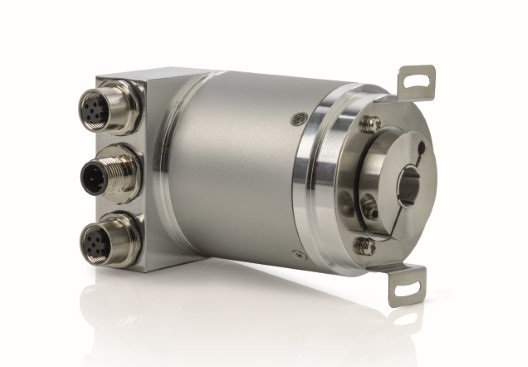

ELTRAAAM 58 F R EtherCAT
产品概述
绝对值旋转编码器 AAM 58 F R EtherCAT，Multiturn encoder with EtherCAT protocol。技术原理：光电式；外径：59；轴径：10, 12, 15；防护等级：65；输出接口：Ethercat。
规格参数
| Tipology | Rotary with bearing |
| Category | Multiturn absolute |
| Mechanics | Blind / Through hollow shaft |
| Technology | Optical |
| Size [mm] | 59 |
| Shaft [mm] | 10, 12, 15 |
| Singleturn max resolution [bit] | 13 |
| Max multiturn resolution [bit] | 12 |
| IP | 65 |
| Output interface | Ethercat |
| Markings / Certifications | CE / UKCA |
| Operating temperature [°C] | -40 ... 80 |
输出接口：Ethercat；防护等级：65；轴径：10, 12, 15；技术原理：光电式；外径：59
