ELTRAAAM 38 F
产品概述

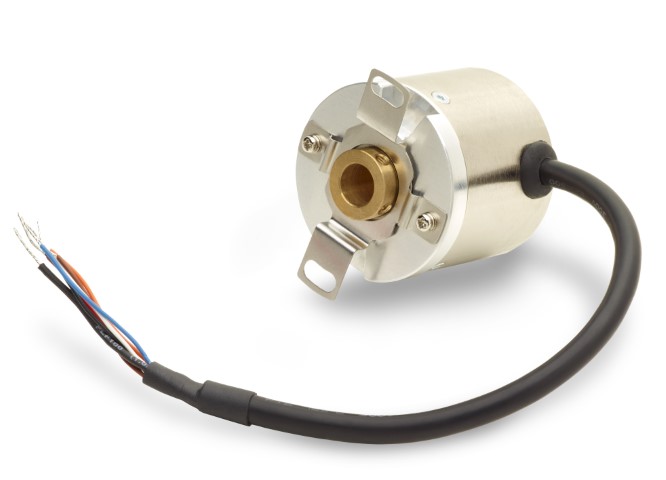

绝对值旋转编码器 AAM 38 F，Multiturn 绝对值 encoder with BiSS electronics。技术原理：光电式；外径：38；轴径：6, 6,35, 8；防护等级：50；输出接口：BiSS-C。
规格参数
| Tipology | Rotary with bearing |
| Category | Multiturn absolute |
| Mechanics | Blind / Through hollow shaft |
| Technology | Optical |
| Size [mm] | 38 |
| Shaft [mm] | 6, 6,35, 8 |
| Singleturn max resolution [bit] | 23 |
| Max multiturn resolution [bit] | 16 |
| IP | 50 |
| Output interface | BiSS-C |
| Markings / Certifications | CE / UKCA |
| Operating temperature [°C] | -20 ... 105 |
输出接口：BiSS-C；防护等级：50；轴径：6, 6,35, 8；技术原理：光电式；外径：38
