ELTRAAAM 36 F
产品概述

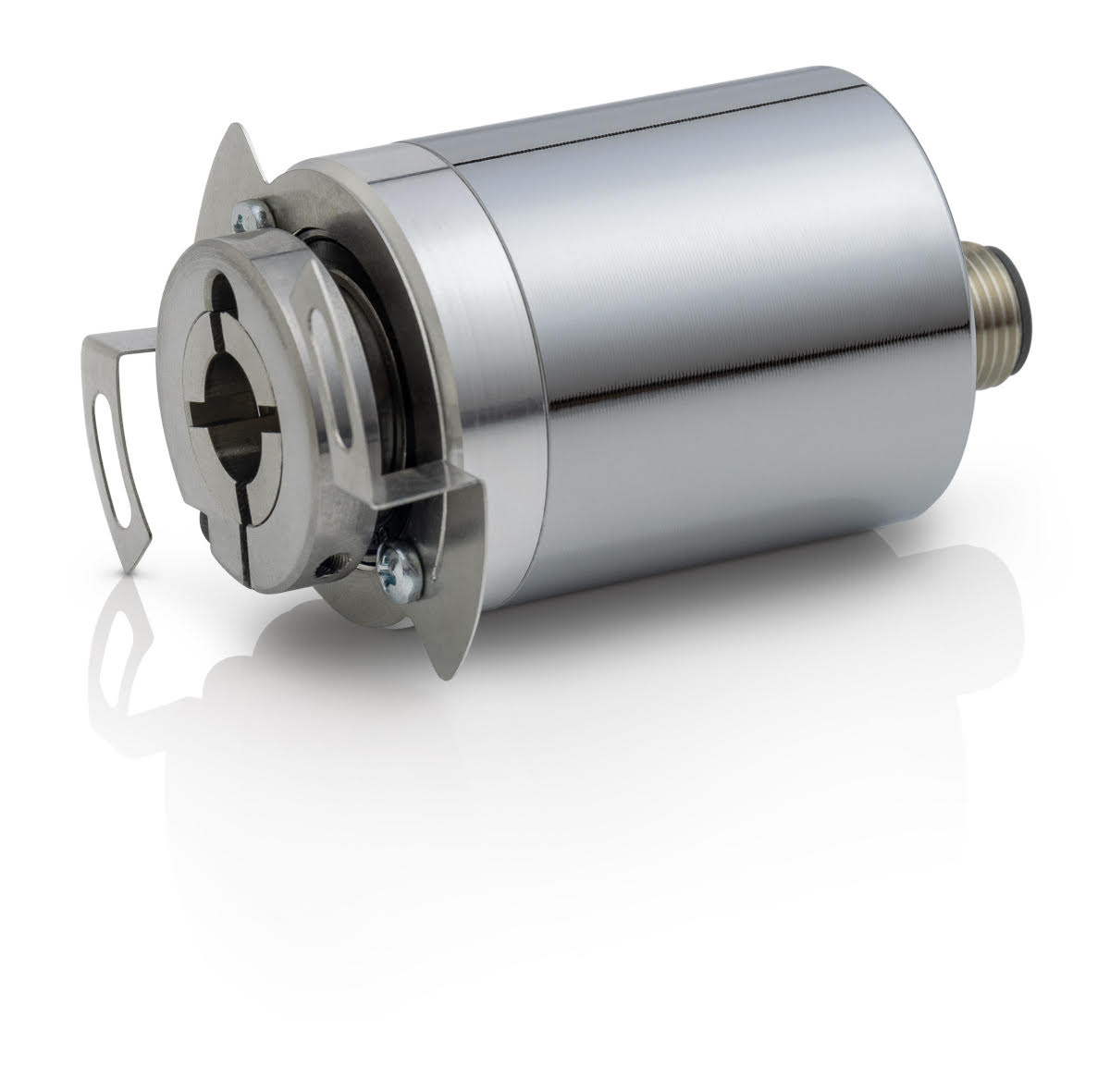

绝对值旋转编码器 AAM 36 F，磁电式 绝对值 encoder with Wiegand technology。技术原理：磁电式；外径：38；轴径：8, 10；防护等级：65, 67；输出接口：CANopen。
规格参数
| Tipology | Rotary with bearing |
| Category | Multiturn absolute |
| Mechanics | Blind / Through hollow shaft |
| Technology | Magnetic |
| Size [mm] | 38 |
| Shaft [mm] | 8, 10 |
| Singleturn max resolution [bit] | 14 |
| Max multiturn resolution [bit] | 24 |
| IP | 65, 67 |
| Output interface | CANopen |
| Markings / Certifications | CE / UKCA |
| Operating temperature [°C] | -40. 85 |
输出接口：CANopen；防护等级：65, 67；轴径：8, 10；技术原理：磁电式；外径：38
