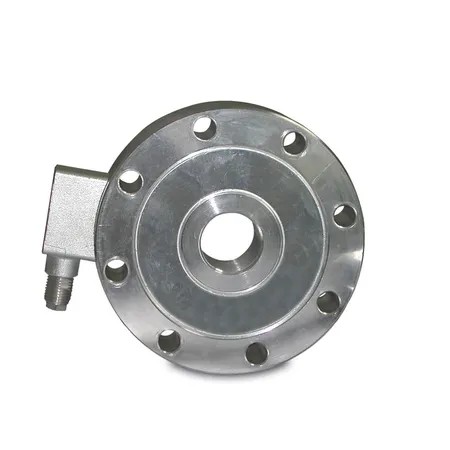

ERICHSENModel 922 – 5 kN
产品概述
用于测量拉力和压力，开放的电缆头，电缆长度约为 5 m。
产品特性
- 用于测量拉力和压力，开放的电缆头，电缆长度约为 5 m。
规格参数
| Parameter | 2 mV/V |
| Nominal Force | 5 kN |
| Testing Force | 5 kN |
| Sensor material | Special steel |
| Measured Value 1 | Force |
| Protection class | IP 67 |
| Bridge resistance | 700 Ω |
| Effective Direction | Tension/Compression |
| Measuring Principle | DMS |
| Insulating resistance | > 5 G Ω |
| Reference temperature | 21 °C |
| Nominal temperature range | -10/+50 °C |
| Storage temperature range | -50/+80 °C |
| Nominal range of supply voltage | 5 - 10 V |
| Breaking load related to nominal force | > 200 % |
| Accuracy acc. to ISO 376 and EN 10002-3 | Class 1 |
| Max. allowable dynamic load (oscillation amplitude according to DIN 50100) related to nominal force | < 70 % |
遵循标准: ISO 376
