产品概述

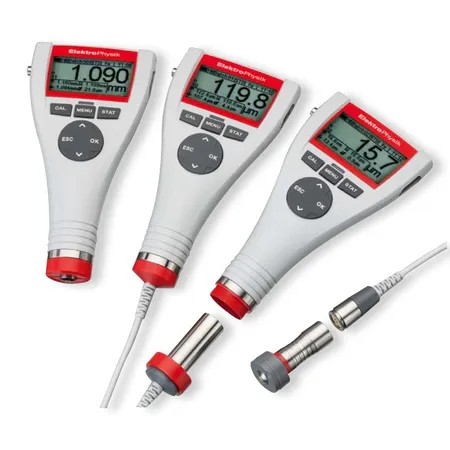

MiniTest 系列的测厚仪可以对铁磁基底（钢/铁）上的非磁性层（涂料、塑料、铬和其他电镀非磁性层等）以及导电基底（铝、铜、钛、奥氏体不锈钢）上的绝缘层（漆、搪瓷、塑料、阳极氧化铝等）进行非破坏性测量，且涵盖了许多测量范围。

规格参数

DT /NDT	NDT
Substrate	F
Data memory	10 batches for a maximum of 10,000 readings (MiniTest 725 and 735)Memories can be partitioned as needed
Dual sensors	Automatic recognition of the substrate material with FN sensors
Power supply	2 pcs batteries, type AA (Mignon); rechargeable NiMH batteries, type AA/HR6 as an option. Battery or rechargeable battery setting option to adapt to the matching nominal voltage
Measuring rate	70 readings per minute in the single mode 20 readings per second in the continuous mode
Continuous mode	For quick identification of thickness variations
Data interfaces	USB and Bluetooth
Layer Thickness	up to 500 µm
Measuring units	Switchable from metric (µm, mm, cm) to imperial (mils, inch, thou)
Calibration modes	Factory calibration, zero-point-, 2-point-, 3-point-calibration, calibration method “rough“
Norms and standards	DIN EN ISO 1461, 2064, 2178, 2360, 2808, 3882, 19840, ASTM B 244, B 499, D7091, E 376, AS 3894.3, SS 1841 60, SSPC-PA 2
Storage temperature	– 20 °C ... 70 °C
Monitoring of limits	Visual and audible signal output
Operating temperature	– 10 °C ... 60 °C
Statistical evaluation	Number of readings, min, max, mean value, standard deviation, coefficient of variation, single value statistics, blocks statistics (norm-conforming / freely configurable)
Calibration procedures according to international standards	ISO, SSPC, “Swedish“, “Australian“
