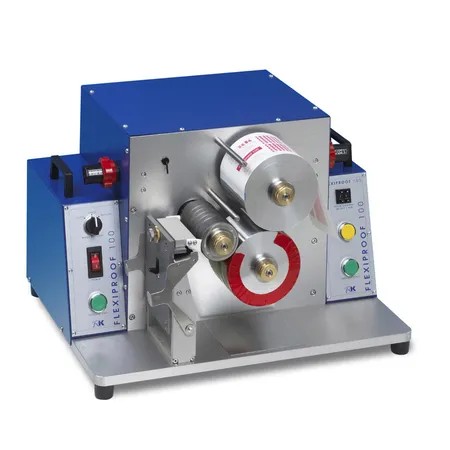

ERICHSENFlexiProof 630
产品概述
新型 FlexiProof 100 是一种用户友好型设备，可使用水基、溶剂基或紫外线柔版基色料快速生产印刷样品。该设备对于所有参与柔版印刷油墨制造和加工的人士都是必不可少的。非常适用于质量控制以及研发领域、打样和计算机辅助调色。
规格参数
| Drive | Electric |
| Breite | 75 mm |
| Ink Types | Solvent based, water based, UV |
| Substrate | Paper, Foil |
| Substrates | Flexible paper, board, film, foil and tissue |
| Bench Space | 55cm wide x 45cm deep |
| Printing Speed | Variable 20 -> 99m/mi |
| UV Lamp details | 200W/cm 2 Peak // Wavelength: 310 - 370 Nm |
| UV Power Supply | 220 - 240V // 50/60Hz, 15amp - single phase |
| LED Lamp details | FJ200 16W/cm 2 at 395 Nm // FJ100 12W/cm 2 at 395 Nm // (385 & 405 Nm also available) |
| UV Powerpack dimensions | 40cm x 40cm x 20cm - 25kgs |
| Standard Plate Thickness | 1.14mm plus 0.5mm, cushion mount (other sizes available) |
| Weight of FlexiProof 100 | 45kg net - 51kg gross |
| FlexiProof 100 (Power Supply) | 220 - 240V or 100 - 120V // 50/60Hz |
| Substrate Size (Flexiproof 100) | 297mm x 105mm - half A4 |
| Maximum Printing Area (Flexiproof 100) | 240mm x 75mm |
| Substrate Size (Flexiproof 100/UV + UVLED) | 125mm x 105mm |
| Maximum Printing Area (Flexiproof 100/UV + UVLED) | 90mm x 75mm |
