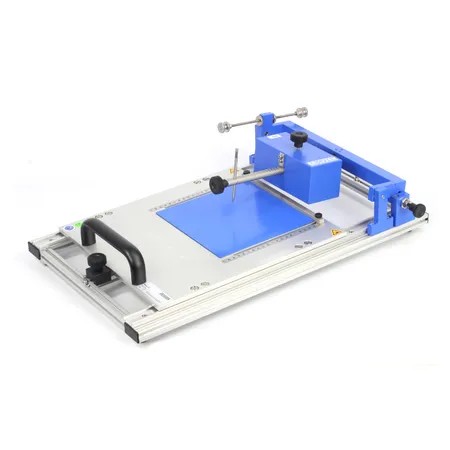

ERICHSENCORROCUTTER 639
产品概述
划痕器 CORROCUTTER 639 用于试片涂层上定义的和可重复的刮擦，以进行腐蚀试验。为此可使用两种最常用的“van Laar”、“Clemen”以及 Sikkens 划痕工具。CORROCUTTER 639 避免了用划痕笔对大量试片划痕时对使用者手指和手腕产生的重负荷。CORROCUTTER 639 划痕器是一种台式测试仪。滑座配有线性导轨（滑动轴承），可手动移动。
规格参数
| Weight | approx. 15 kg |
| Scratch length | max. approx. 220 mm |
| Scratch profile | Van Laar, Clemen, Sikkens |
| Scratching force | approx. 2-40 N |
| Dimensions (L x W x H) | 600 x 400 x 160 mm |
| Dimensions of the sample panels (length x width x thickness) | max. approx. 300 x 200 x 20 mm |
| Dimensions of the sample panels - using the cross-scoring template (length x width x thickness) | max. approx. 270 x 270 x 20 mm |
| Dimensions of the sample panels - using the St. Andrew's cross template (length x width x thickness) | max. approx. 297 x 210 x 20 mm |
遵循标准: DIN 53 167; VDA 621-414; VDA 621-415; ECCA T8; DIN ISO 4623
