ERICHSEN610 / 400
产品概述

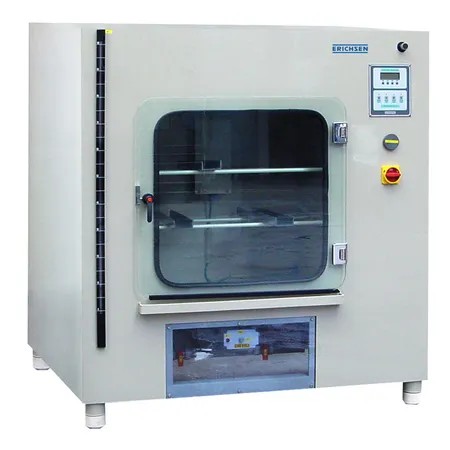

CORROTHERM 610 是一种极其紧凑、节省空间的全塑料结构（聚丙烯）腐蚀测试仪，包含标准执行最常见喷雾和冷凝水试验所需的所有设备（DIN 50 021，DIN EN ISO 6270-2，DIN EN ISO 7253，ISO 11503，ASTM B 117，ASTM B 368 T“铜盐加速醋酸盐雾试验”）。有两种容积（400 l 和 1000 l）的两个不同型号（610 和 610e）可选。带前门的机柜结构确保操作简便，便于进入试验室。喷嘴位于后壁内侧，因此整个试验室都可用于试样装载。
规格参数
| Test 1 | Condensation test |
| Test 2 | Salt spray (fog) tests |
| Power supply | 230 V/AC, 50/60 Hz |
| Effective Volume | 400l |
| Net weight in kg (approx.) | 210 |
| Dimensions (W x D x H) in mm | 1320 x 720 x 1460 |
| Test temperature range in °C | from ambient temperature up to +50 |
| Capacity of test panels (approx.) | 80 |
| Power consumption in VA (approx.) | 2100 |
| Capacity of salt solution in l (approx.) | 100 |
| Capacity in l without dome area (approx.) | 450 |
| Dimensions without dome area (W x D x H) in mm | 800 x 710 x 800 |
| Compressed air supply in bar, approx. 5 - 8 Nm³/h | 4 - 6 |
| Water supply in bar (water de-mineralised), approx. 1l/h | 2 - 4 |
遵循标准: DIN EN ISO 6270-2 CH; DIN 50958; DIN 55991; ISO 11503; ASTM D2247; BS 3900 Part F2; ASTM B117; D171058; ISO 9227; DIN EN ISO 9227 NSS; DIN EN ISO 9227 AASS; DIN EN ISO 9227 CASS
